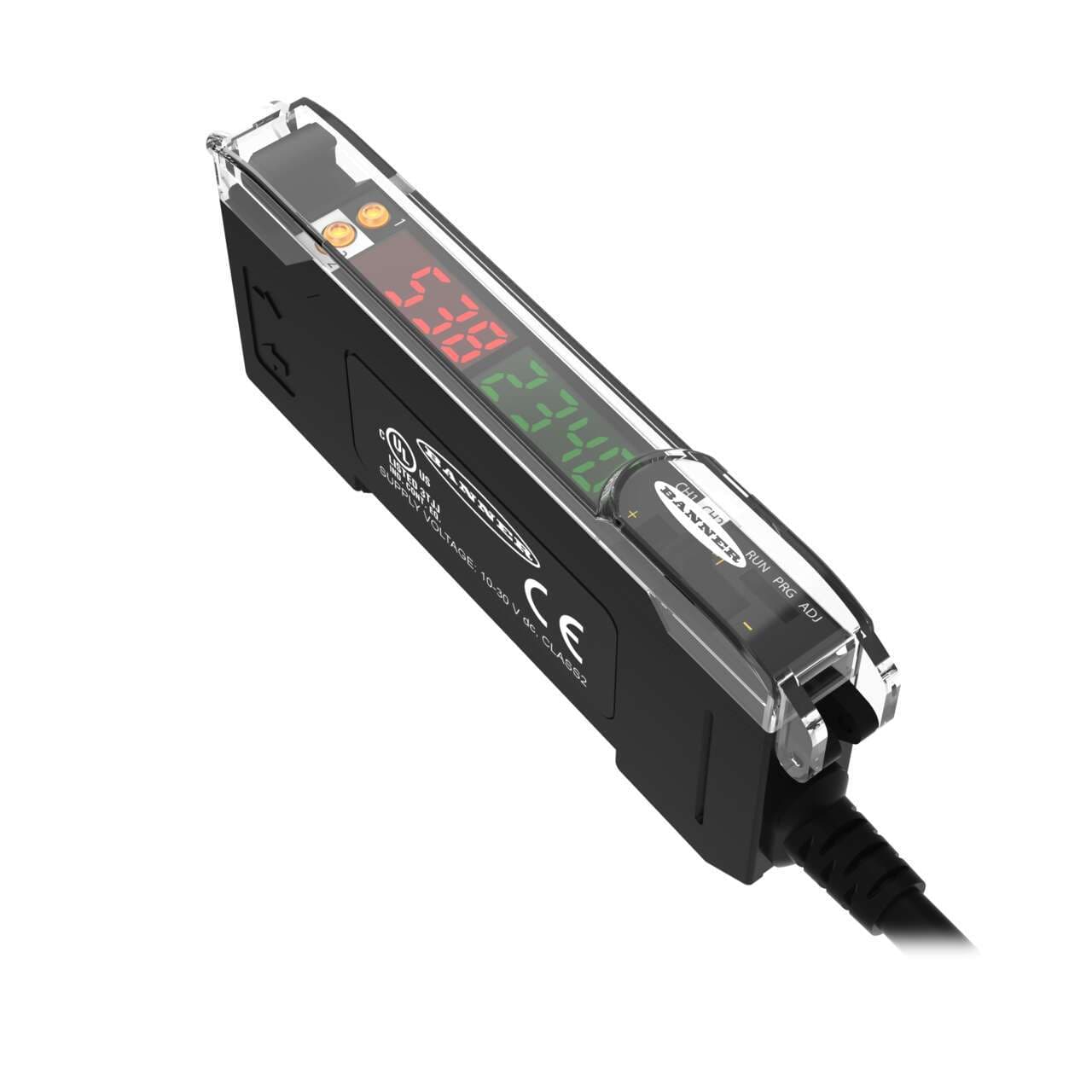

DF-G3LIR-PD-2M

Banner

Product Lifecycle: Active

Banner Engineering DF-G3LIR-PD-2M is an amplifier for sensors, specifically designed for long-range fiber optic sensor applications, and falls under the DF-G3 Expert series. It features a thermoplastic housing with glass fiber, making it suitable for DIN rail mounting. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It utilizes infrared (IR) light with a wavelength of 1450 nm and boasts a quick response time of 0.5ms. The DF-G3LIR-PD-2M is equipped with two digital outputs (PNP transistor; complementary NO/NC) and is designed for high-power water detection applications. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads, and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The device is rectangular in shape.

DF-G3LIR-PD-2M

Banner Engineering DF-G3LIR-PD-2M is an amplifier for sensors, specifically designed for long-range fiber optic sensor applications, and falls under the DF-G3 Expert series. It features a thermoplastic housing with glass fiber, making it suitable for DIN rail mounting. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It utilizes infrared (IR) light with a wavelength of 1450 nm and boasts a quick response time of 0.5ms. The DF-G3LIR-PD-2M is equipped with two digital outputs (PNP transistor; complementary NO/NC) and is designed for high-power water detection applications. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads, and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The device is rectangular in shape.

  • Housing MaterialThermoplastic
  • IO LinkNo
  • Feature: Health/ Marginal Signal OutputYes
  • Feature: AudibleNo
  • Feature: Hazardous AreaNo
  • Feature: Timing (Hold/Delay)Yes
  • Special Feature: Bussable PowerNo
  • Delay at Power-up (ms)500
  • Power Supply/Supply Voltage10-30 V dc
  • AdjustmentsTeach Button
  • Minimum response time (ms).5
  • Indicator Display TypeDual Digital Displays
  • Intrinsically SafeNo
  • Crosstalk AvoidanceYes
  • Special Feature: Remote TeachYes
  • Max Op. Temperature (°C)55
  • Min Op. Temperature (°C)-10
  • Max Op. Relative Humidity (%)90% @ 60°C
  • NEMA RatingNEMA 1
  • IP RatingIP50
  • Number of Pins5
  • Repeatability (µs)100 to 180
  • Output Type (Specific)Dual Discrete
  • Quick Disconnect TypeNo QD
  • ConnectionCable
  • OutputPNP
  • Input/OutputDiscrete
  • Color LED - AmplifiersLong Infrared (Water Detection)
  • Primary Housing MaterialThermoplastic
  • Fiber TypeGlass Only
  • PowerDC
  • Housing StyleDIN Rail
  • Cable Length (m)2
  • Sub-range nameDF-G3 Expert series
  • Designfor water detection
  • Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Materialthermoplastic housing Glass fiber
  • Equivalent toDFG3LIRPD2M
  • Main functionAmplifier for sensor
  • DisplayLED 4 digits x 2 (red + green)
  • ShapeRectangular
  • Mounting modeDIN rail mounting
  • Product series / family nameFiber optic amplifiers
  • FunctionsLong-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
  • Wavelength1450 nm
  • Digital outputs2 x digital outputs (PNP transistors)
  • Compliant with standard(s)cULus CE
  • Order code / Manufacturer SKU87696
  • Primary brandBanner Engineering
  • Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light ColorInfrared (IR)
  • Degree of protectionIP50 NEMA 1
  • Ambient air temperature for operation-10...+55 °C
