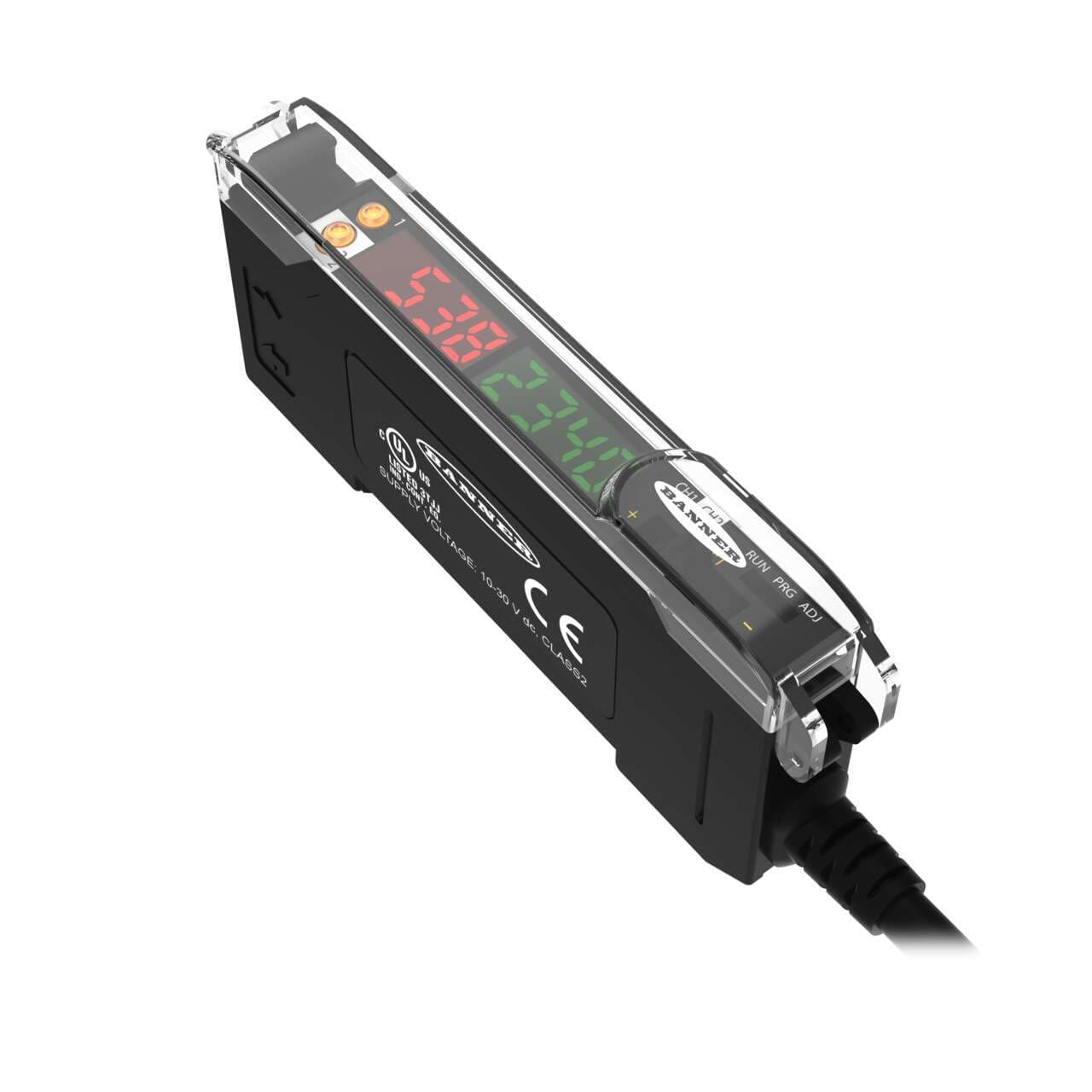

DF-G3IR-PI-Q5 Banner Sensor Accessories

Name: DF-G3IR-PI-Q5
Brand: Banner
Price: 284 USD
Availability: BackOrder

Banner DF-G3IR-PI-Q5 DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP and 4-20 mA Analog; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

Part#:DF-G3IR-PI-Q5

Manufacturer:Banner

Alt. Part#:87679

Product Lifecycle:Active

Get a quick Quote!

DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP and 4-20 mA Analog; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3IR-PI-Q5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
90.7184 g
Country Of Origin
CN
Housing Material
Thermoplastic
IO Link
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
Yes
Analog Output
4 to 20 mA
Minimum response time (ms)
.5
Special Feature: Bussable Power
No
Adjustments
Teach Button
Delay at Power-up (ms)
500
Indicator Display Type
Dual Digital Displays
Power Supply/Supply Voltage
10-30 V dc
Intrinsically Safe
No
Crosstalk Avoidance
Yes
Special Feature: Remote Teach
Yes
Max Op. Relative Humidity (%)
90% @ 60°C
Min Op. Temperature (°C)
-10
Max Op. Temperature (°C)
55

IP Rating

IP50

NEMA Rating

NEMA 1

Repeatability (µs)

100 to 180

Number of Pins

Output Type (Specific)

Analog & Discrete

Quick Disconnect Type

M12 (Euro)

Fiber Type

Glass Only

Connection

Pigtail QD

Output

PNP

Color LED - Amplifiers

Infrared

Primary Housing Material

Thermoplastic

Housing Style

DIN Rail

Input/Output

Analog & Discrete

Power

Cable Length (m)

0.15

Sub-range name

DF-G3 Expert series

Functions

Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)

Material

thermoplastic housing PVC connector Glass fiber

Display

LED 4 digits x 2 (red + green)

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector

Order code / Manufacturer SKU

87679

Main function

Amplifier for sensor

Wavelength

850 nm

Analog outputs

1 x analog output (4-20mA)

Degree of protection

IP50 NEMA 1

Primary brand

Banner Engineering

Product series / family name

Fiber optic amplifiers

Shape

Rectangular

Digital outputs

1 x digital output (PNP transistor)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Light Color

Infrared (IR)

Mounting mode

DIN rail mounting

Ambient air temperature for operation

-10...+55 °C

Equivalent to

DFG3IRPIQ5

Compliant with standard(s)

cULus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DF-G3IR-PI-Q5 Description

Banner Engineering DF-G3IR-PI-Q5 is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It is constructed with a thermoplastic housing, PVC connector, and glass fiber, ensuring durability within an ambient air temperature range of -10 to +55 °C. This part offers 1 x analog output (4-20mA) and 1 x digital output (PNP transistor; complementary NO/NC), catering to diverse connectivity needs. It boasts an IP50 NEMA 1 degree of protection, operates with infrared light at a wavelength of 850 nm, and responds swiftly with a time of 0.5ms / 0.0005 s. The DF-G3IR-PI-Q5, part of the DF-G3 Expert series, is designed as a high-power, long-range fiber optic sensor amplifier. It comes pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
