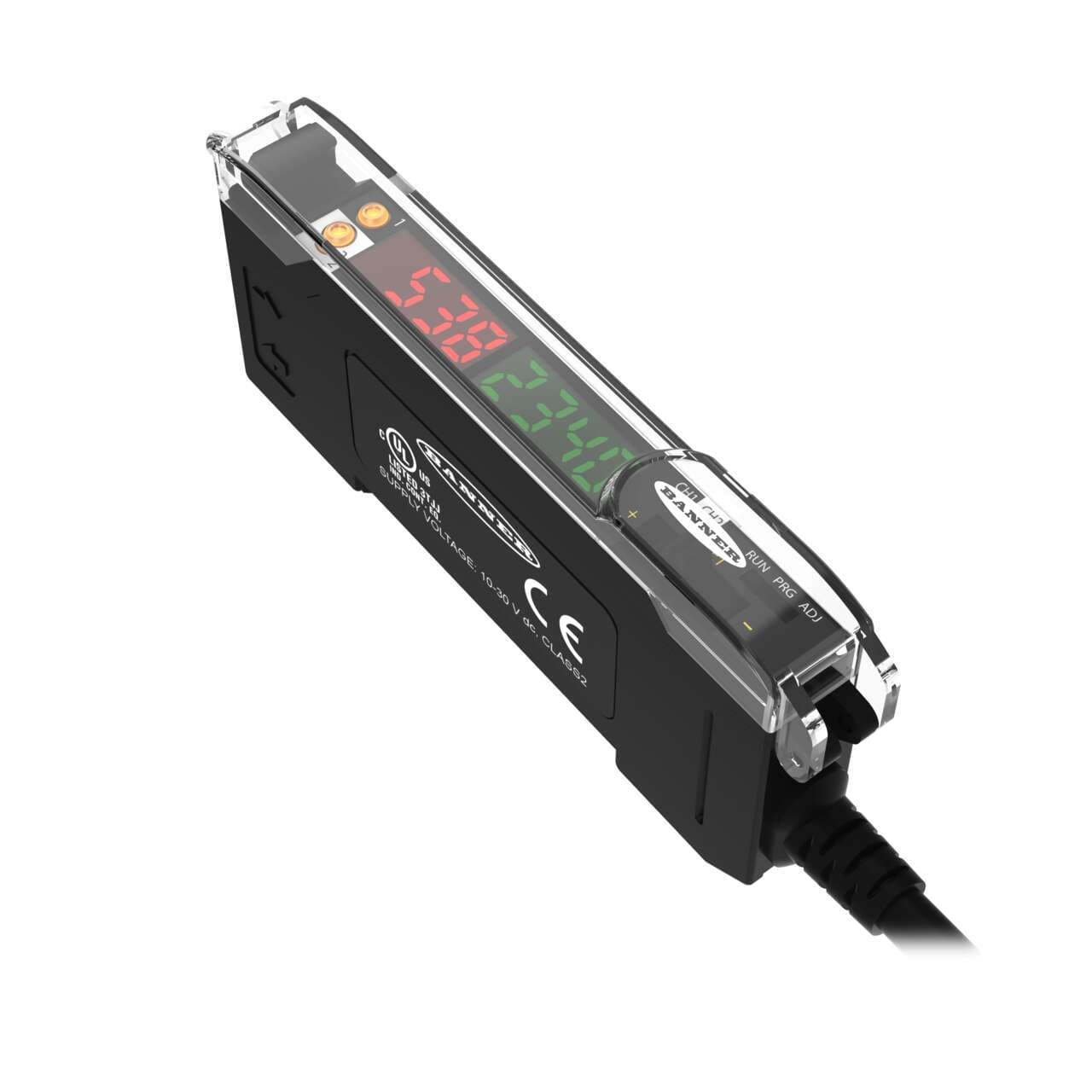

DF-G3IR-NU-2M Banner Sensor Accessories

DF-G3IR-NU-2M on Powermatic Associates
Banner

Part#:DF-G3IR-NU-2M

Manufacturer:Banner

Alt. Part#:87661

Product Lifecycle:Active

Get a quick Quote!

DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 12-30 V dc; Outputs: 1 NPN and 0-10 V dc Analog; 2 m 5-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3IR-NU-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    CN
  • IO Link
    No
  • Housing Material
    Thermoplastic
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Hazardous Area
    No
  • Special Feature: Bussable Power
    No
  • Indicator Display Type
    Dual Digital Displays
  • Minimum response time (ms)
    .5
  • Delay at Power-up (ms)
    500
  • Power Supply/Supply Voltage
    12-30 V dc
  • Analog Output
    0 to 10 V dc
  • Intrinsically Safe
    No
  • Crosstalk Avoidance
    Yes
  • Adjustments
    Teach Button
  • Special Feature: Remote Teach
    Yes
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • NEMA Rating
    NEMA 1
  • Max Op. Temperature (°C)
    55
  • Min Op. Temperature (°C)
    -10
  • IP Rating
    IP50
  • Output Type (Specific)
    Analog & Discrete
  • Repeatability (µs)
    100 to 180
  • Quick Disconnect Type
    No QD
  • Number of Pins
    5
  • Output
    NPN
  • Cable Length (m)
    2
  • Color LED - Amplifiers
    Infrared
  • Connection
    Cable
  • Fiber Type
    Glass Only
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    DIN Rail
  • Input/Output
    Analog & Discrete
  • Power
    DC
  • Primary brand
    Banner Engineering
  • Shape
    Rectangular
  • Analog outputs
    1 x analog output (0-10Vdc)
  • Compliant with standard(s)
    cULus CE
  • Sub-range name
    DF-G3 Expert series
  • Display
    LED 4 digits x 2 (red + green)
  • Main function
    Amplifier for sensor
  • Product series / family name
    Fiber optic amplifiers
  • Wavelength
    850 nm
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Degree of protection
    IP50 NEMA 1
  • Light Color
    Infrared (IR)
  • Digital outputs
    1 x digital output (NPN transistor)
  • Material
    thermoplastic housing Glass fiber
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Mounting mode
    DIN rail mounting
  • Functions
    Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
  • Ambient air temperature for operation
    -10...+55 °C
  • Order code / Manufacturer SKU
    87661
  • Equivalent to
    DFG3IRNU2M

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


DF-G3IR-NU-2M Description

Banner Engineering DF-G3IR-NU-2M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing and glass fiber material. It operates within an ambient air temperature range of -10 to +55°C and features 1 x analog output (0-10Vdc) and 1 x digital output (NPN transistor; complementary NO/NC). This part offers a degree of protection rated at IP50 NEMA 1 and emits infrared light with a wavelength of 850 nm. Its response time is 0.5ms / 0.0005 s. The DF-G3IR-NU-2M, part of the DF-G3 Expert series, is a high-power, long-range fiber optic sensor amplifier with a rectangular shape. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads and requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.).
