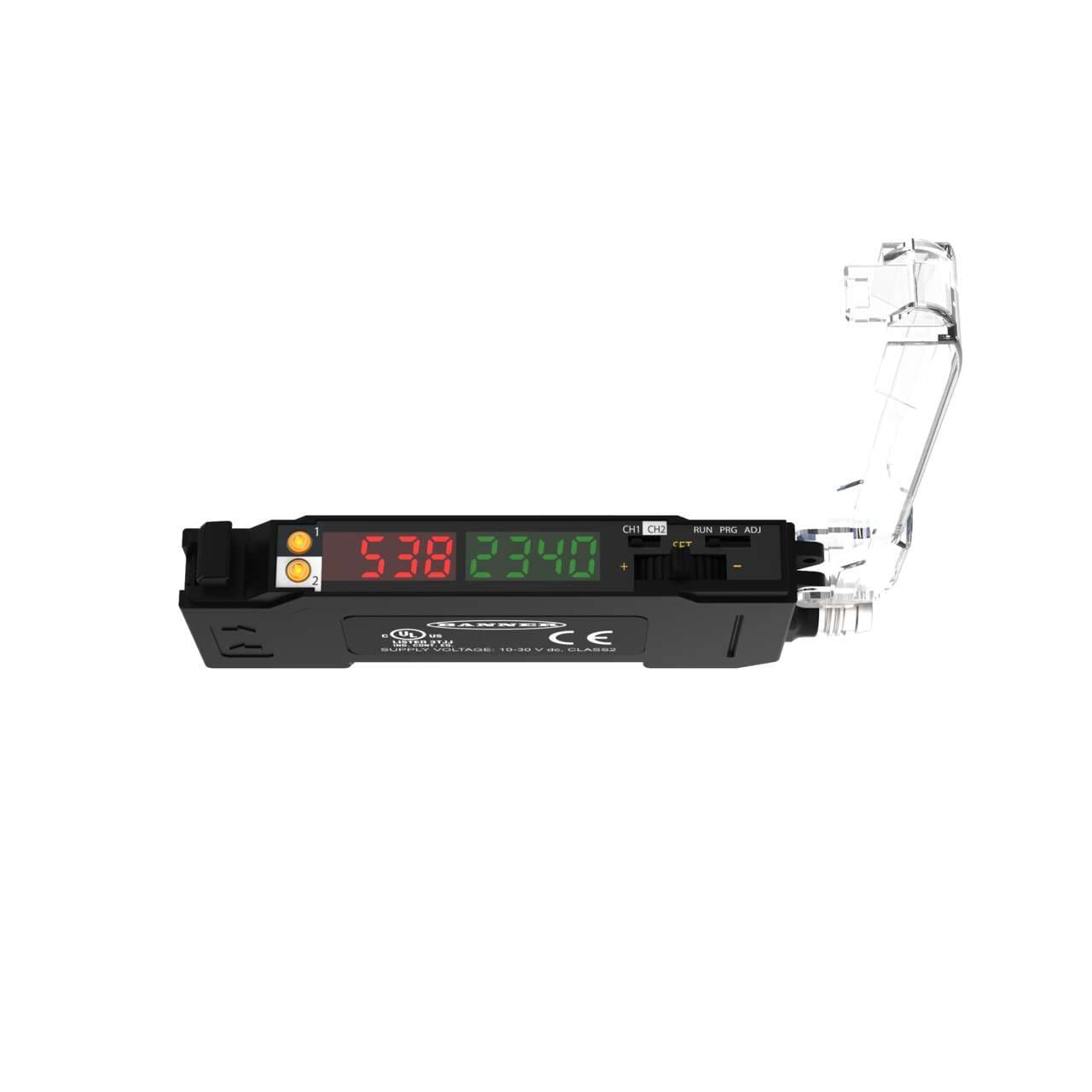

DF-G3IR-ND-Q7 Banner Sensor Accessories
Part#:DF-G3IR-ND-Q7
Alt. Part#:87655
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 2 NPN; 5-pin M8 Integral QD
Product Details
- Weight 62.7771328 g
- Country Of Origin CN
- Intrinsically Safe No
- Adjustments Teach Button
- Max Op. Relative Humidity (%) 90% @ 60°C
- Crosstalk Avoidance Yes
- Min Op. Temperature (°C) -10
- Special Feature: Remote Teach Yes
- Max Op. Temperature (°C) 55
- Output Type (Specific) Dual Discrete
- Quick Disconnect Type M8 (Pico)
- IO Link No
- Housing Material Thermoplastic
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Health/ Marginal Signal Output Yes
- Minimum response time (ms) .5
- Special Feature: Bussable Power No
- Feature: Timing (Hold/Delay) Yes
- Indicator Display Type Dual Digital Displays
- Delay at Power-up (ms) 500
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 1
- IP Rating IP50
- Number of Pins 5
- Repeatability (µs) 100 to 180
- Power DC
- Color LED - Amplifiers Infrared
- Input/Output Discrete
- Output NPN
- Connection Integral QD
- Primary Housing Material Thermoplastic
- Housing Style DIN Rail
- Fiber Type Glass Only
- Product series / family name Fiber optic amplifiers
- Mounting mode DIN rail mounting
- Degree of protection IP50 NEMA 1
- Main function Amplifier for sensor
- Sub-range name DF-G3 Expert series
- Light Color Infrared (IR)
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 2 x digital outputs (NPN transistors)
- Material thermoplastic housing Glass fiber
- Equivalent to DFG3IRNDQ7
- Display LED 4 digits x 2 (red + green)
- Wavelength 850 nm
- Ambient air temperature for operation -10...+55 °C
- Functions Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
- Shape Rectangular
- Compliant with standard(s) cULus CE
- Connection type Pre-equipped with 5-pin Pico-style M8 connector
- Order code / Manufacturer SKU 87655
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3IR-ND-Q7 on Powermatic Associates is $238.00. Order now.
About the product
Banner Engineering DF-G3IR-ND-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing and glass fiber material. It operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. This part emits infrared light at a wavelength of 850 nm and features 2 digital outputs (NPN transistor; complementary NO/NC) for connectivity. Its rectangular shape and high-power design are part of the DF-G3 Expert series, and it is specifically a long-range fiber optic sensor amplifier. The DF-G3IR-ND-Q7 comes pre-equipped with a 5-pin Pico-style M8 connector for easy installation and supports a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc.
