DF-G3-PS-Q5 Banner Sensor Accessories
Part#:DF-G3-PS-Q5
Alt. Part#:87579
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description

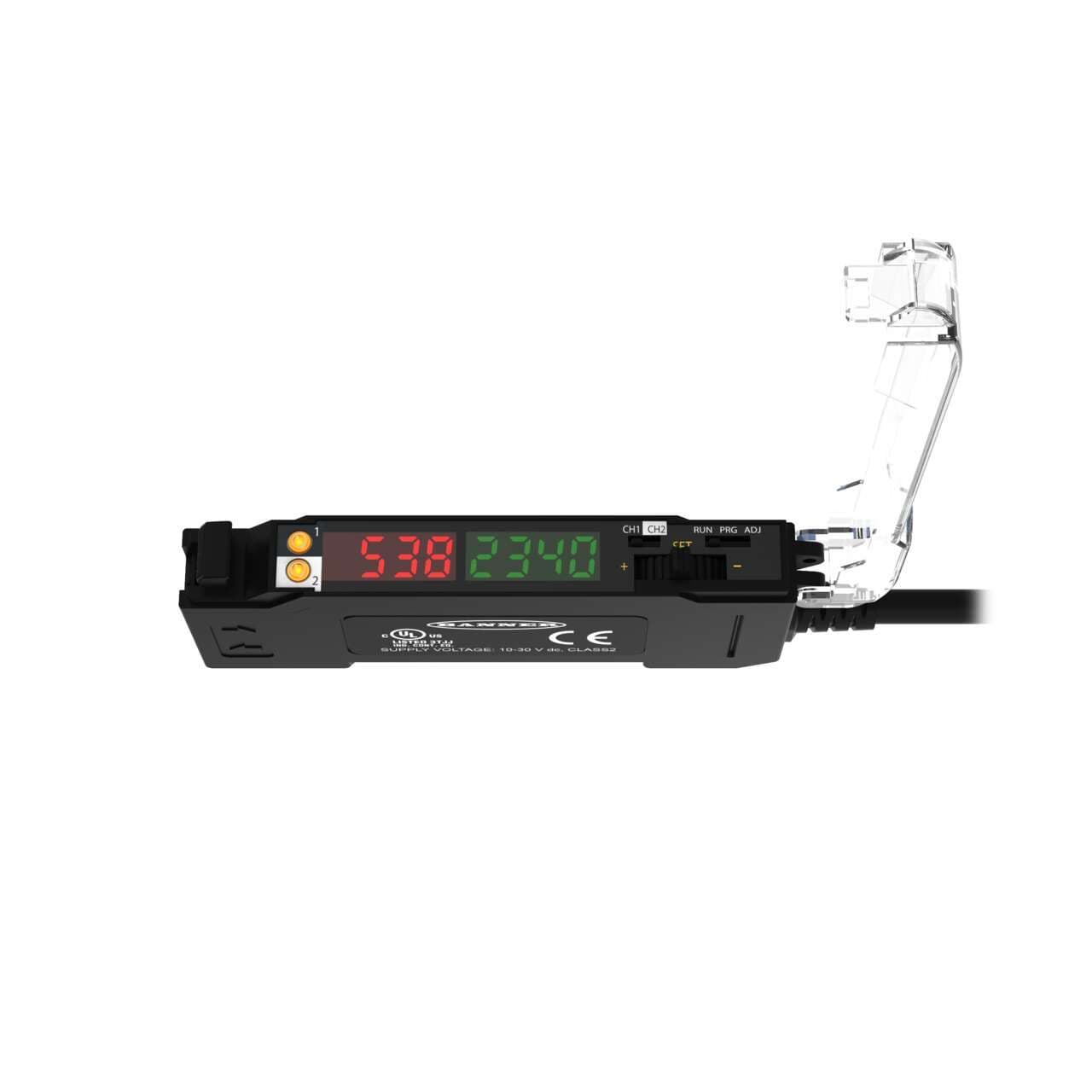

DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- IO Link No
- Housing Material Thermoplastic
- Feature: Audible No
- Feature: Health/ Marginal Signal Output Yes
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
- Special Feature: Bussable Power No
- Minimum response time (ms) .5
- Indicator Display Type Dual Digital Displays
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 500
- Intrinsically Safe No
- Adjustments Teach Button
- Crosstalk Avoidance Yes
- Special Feature: Remote Teach Yes
- Max Op. Relative Humidity (%) 90% @ 60°C
- IP Rating IP50
- Output Type (Specific) Single Discrete
- Number of Pins 4
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- NEMA Rating NEMA 1
- Repeatability (µs) 50 to 250
- Quick Disconnect Type M12 (Euro)
- Input/Output Discrete
- Color LED - Amplifiers Red
- Connection Pigtail QD
- Output PNP
- Fiber Type Plastic and Glass
- Primary Housing Material Thermoplastic
- Power DC
- Housing Style DIN Rail
- Cable Length (m) 0.15
- Main function Amplifier for sensor
- Display LED 4 digits x 2 (red + green)
- Light Color Visible red
- Order code / Manufacturer SKU 87579
- Sub-range name DF-G3 Expert series
- Wavelength 635 nm
- Material thermoplastic housing PVC connector
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Mounting mode DIN rail mounting
- Product series / family name Fiber optic amplifiers
- Functions Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Shape Rectangular
- Degree of protection IP50 NEMA 1
- Equivalent to DFG3PSQ5
- Ambient air temperature for operation -10...+55 °C
- Compliant with standard(s) cULus CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3-PS-Q5 on Powermatic Associates is $226.00. Order now.
About the product
Banner Engineering DF-G3-PS-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 635 nm. It has a rapid response time of 0.5ms / 0.0005 s and includes 1 x digital output (PNP transistor; complementary NO/NC). The DF-G3-PS-Q5, part of the DF-G3 Expert series, is rectangular in shape and incorporates a TEACH mode high-power design. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
