DF-G3-PI-Q7 Banner Sensor Accessories

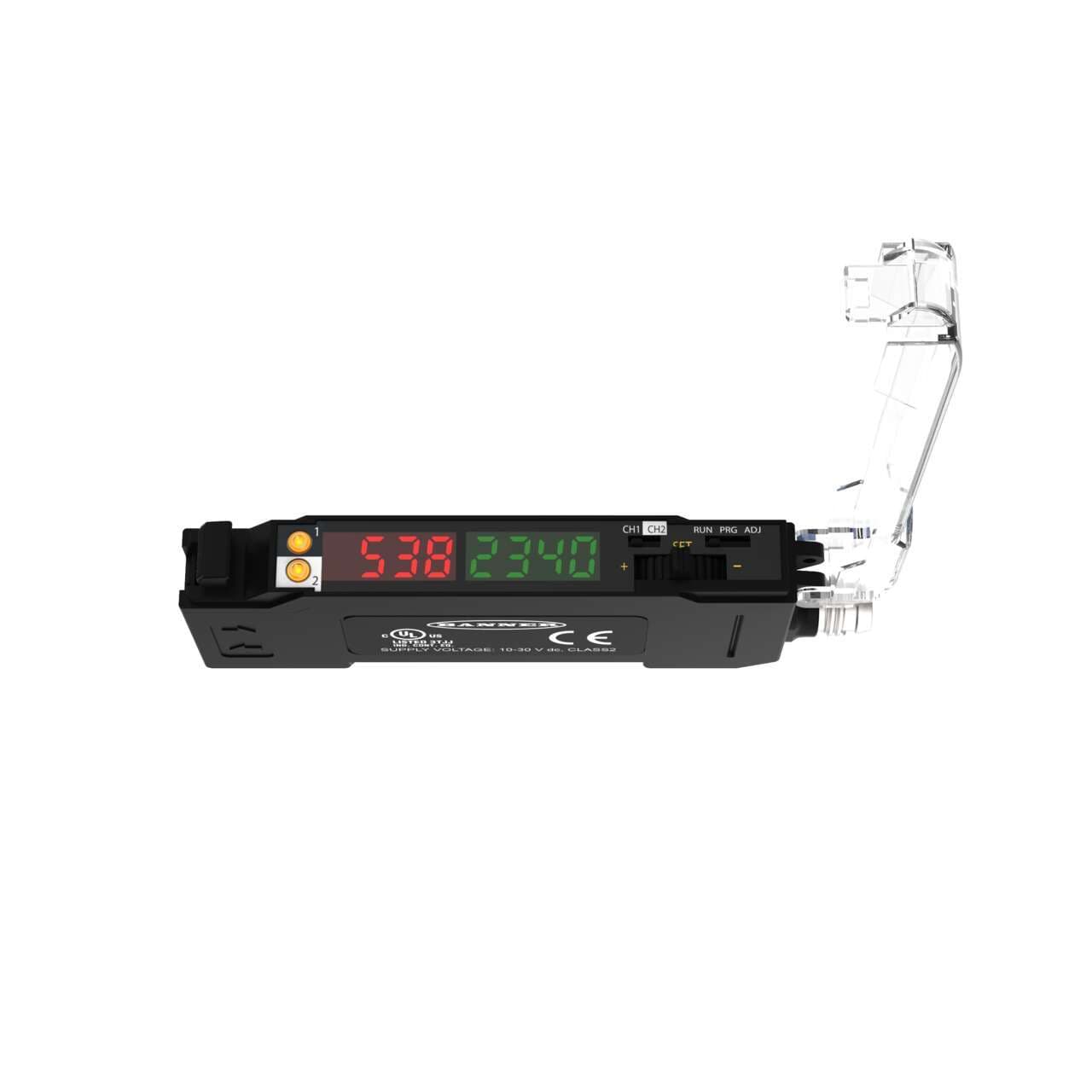

Banner DF-G3-PI-Q7 DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP and 4-20 mA analog; 5-pin M8 Integral QD
Banner

Part#:DF-G3-PI-Q7

Manufacturer:Banner

Alt. Part#:87610

Product Lifecycle:Active

Get a quick Quote!

DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP and 4-20 mA analog; 5-pin M8 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3-PI-Q7 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    CN
  • Indicator Display Type
    Dual Digital Displays
  • IO Link
    No
  • Housing Material
    Thermoplastic
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Analog Output
    4 to 20 mA
  • Special Feature: Bussable Power
    No
  • Minimum response time (ms)
    .5
  • Delay at Power-up (ms)
    500
  • Power Supply/Supply Voltage
    10-30 V dc
  • Adjustments
    Teach Button
  • Crosstalk Avoidance
    Yes
  • Intrinsically Safe
    No
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Max Op. Temperature (°C)
    55
  • Special Feature: Remote Teach
    Yes
  • Min Op. Temperature (°C)
    -10
  • NEMA Rating
    NEMA 1
  • Number of Pins
    5
  • IP Rating
    IP50
  • Repeatability (µs)
    100 to 180
  • Output Type (Specific)
    Analog & Discrete
  • Input/Output
    Analog & Discrete
  • Quick Disconnect Type
    M8 (Pico)
  • Output
    PNP
  • Color LED - Amplifiers
    Red
  • Fiber Type
    Plastic and Glass
  • Connection
    Integral QD
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    DIN Rail
  • Main function
    Amplifier for sensor
  • Light Color
    Visible red
  • Display
    LED 4 digits x 2 (red + green)
  • Wavelength
    635 nm
  • Product series / family name
    Fiber optic amplifiers
  • Material
    thermoplastic housing
  • Functions
    Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
  • Mounting mode
    DIN rail mounting
  • Equivalent to
    DFG3PIQ7
  • Ambient air temperature for operation
    -10...+55 °C
  • Sub-range name
    DF-G3 Expert series
  • Digital outputs
    1 x digital output (PNP transistor)
  • Compliant with standard(s)
    cULus CE
  • Order code / Manufacturer SKU
    87610
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-equipped with 5-pin Pico-style M8 connector
  • Degree of protection
    IP50 NEMA 1
  • Shape
    Rectangular
  • Analog outputs
    1 x analog output (4-20mA)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


DF-G3-PI-Q7 Description

Banner Engineering DF-G3-PI-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and features one analog output (4-20mA) and one digital output (PNP transistor; complementary NO/NC). This part, belonging to the DF-G3 Expert series, offers a degree of protection rated at IP50 NEMA 1 and emits visible red light with a wavelength of 635 nm. Its response time is 0.5ms / 0.0005 s. The DF-G3-PI-Q7 is characterized by its rectangular shape and is designed with TEACH mode high-power functionality. It comes pre-equipped with a 5-pin Pico-style M8 connector for connectivity and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
