DF-G3-NU-Q7 Banner Sensor Accessories

Name: DF-G3-NU-Q7
Brand: Banner

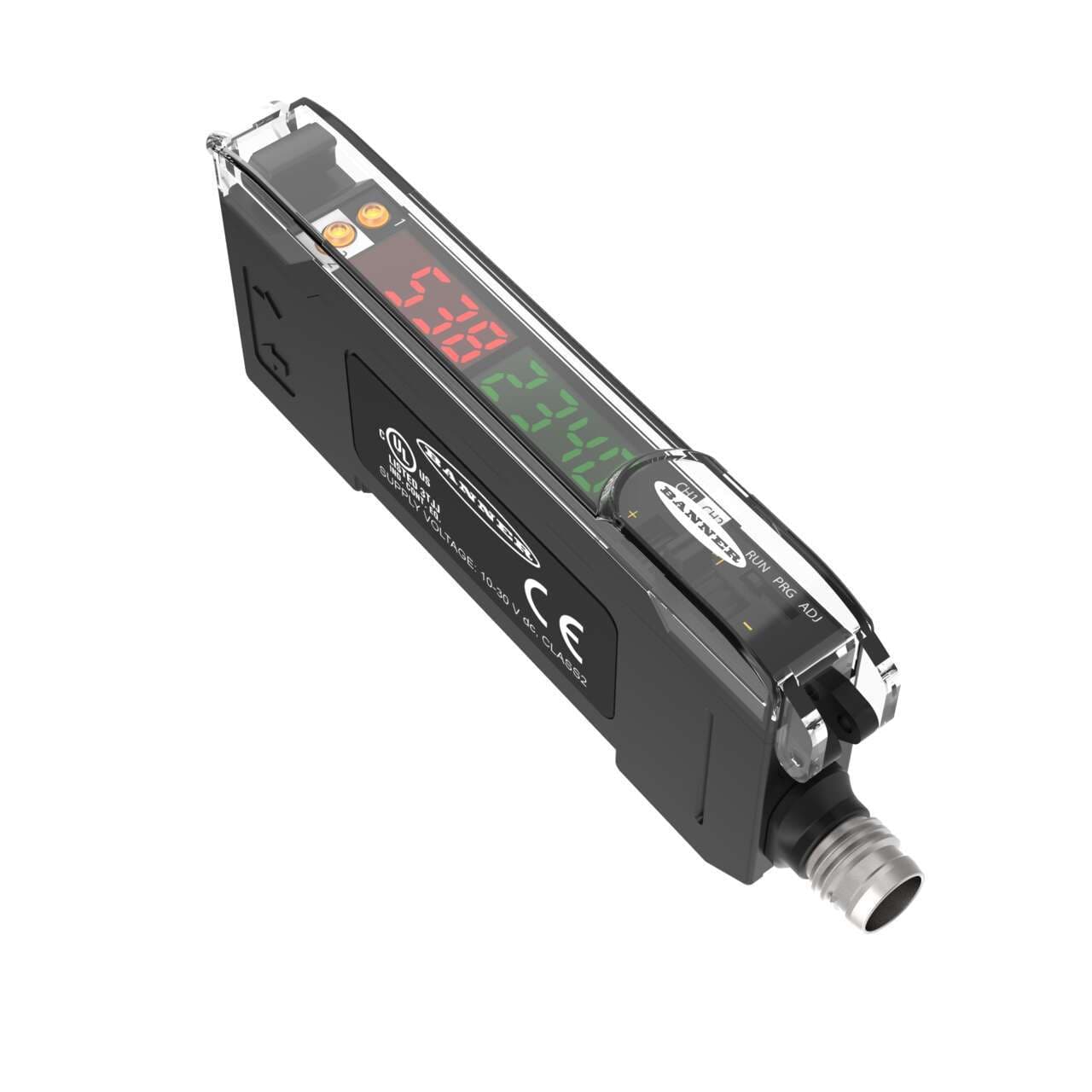

Banner DF-G3-NU-Q7 DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 12-30 V dc; Outputs: 1 NPN and 0-10 V dc analog; 5-pin M8 Integral QD

Part#:DF-G3-NU-Q7

Manufacturer:Banner

Alt. Part#:87595

Product Lifecycle:Active

Get a quick Quote!

DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 12-30 V dc; Outputs: 1 NPN and 0-10 V dc analog; 5-pin M8 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3-NU-Q7 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
19.7766112 g
Country Of Origin
CN
Housing Material
Thermoplastic
IO Link
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
Yes
Indicator Display Type
Dual Digital Displays
Special Feature: Bussable Power
No
Analog Output
0 to 10 V dc
Minimum response time (ms)
.5
Delay at Power-up (ms)
500
Intrinsically Safe
No
Power Supply/Supply Voltage
12-30 V dc
Adjustments
Teach Button
Repeatability (µs)
100 to 180
Crosstalk Avoidance
Yes
IP Rating
IP50
NEMA Rating
NEMA 1
Output Type (Specific)
Analog & Discrete

Number of Pins

Special Feature: Remote Teach

Yes

Max Op. Relative Humidity (%)

90% @ 60°C

Min Op. Temperature (°C)

-10

Max Op. Temperature (°C)

Connection

Integral QD

Quick Disconnect Type

M8 (Pico)

Output

NPN

Color LED - Amplifiers

Red

Fiber Type

Plastic and Glass

Primary Housing Material

Thermoplastic

Input/Output

Analog & Discrete

Housing Style

DIN Rail

Power

Material

thermoplastic housing

Compliant with standard(s)

cULus CE

Sub-range name

DF-G3 Expert series

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Wavelength

635 nm

Degree of protection

IP50 NEMA 1

Main function

Amplifier for sensor

Display

LED 4 digits x 2 (red + green)

Mounting mode

DIN rail mounting

Digital outputs

1 x digital output (NPN transistor)

Ambient air temperature for operation

-10...+55 °C

Order code / Manufacturer SKU

87595

Primary brand

Banner Engineering

Product series / family name

Fiber optic amplifiers

Functions

Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode

Connection type

Pre-equipped with 5-pin Pico-style M8 connector

Equivalent to

DFG3NUQ7

Light Color

Visible red

Shape

Rectangular

Analog outputs

1 x analog output (0-10Vdc)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DF-G3-NU-Q7 Description

Banner Engineering DF-G3-NU-Q7 is an amplifier for sensor applications, designed for DIN rail mounting. It features a thermoplastic housing and operates within an ambient air temperature range of -10 to +55°C. This part offers 1 x analog output (0-10Vdc) and 1 x digital output (NPN transistor; complementary NO/NC), ensuring versatile connectivity options. It is characterized by a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 635 nm. The DF-G3-NU-Q7, part of the DF-G3 Expert series, is designed with a rectangular shape and incorporates a TEACH mode high-power function for enhanced performance. It comes pre-equipped with a 5-pin Pico-style M8 connector for easy installation and requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.), making it suitable for a wide range of long-range fiber optic sensor amplifier applications.
