DF-G2W-NS-Q7
Banner
Product Lifecycle: Active

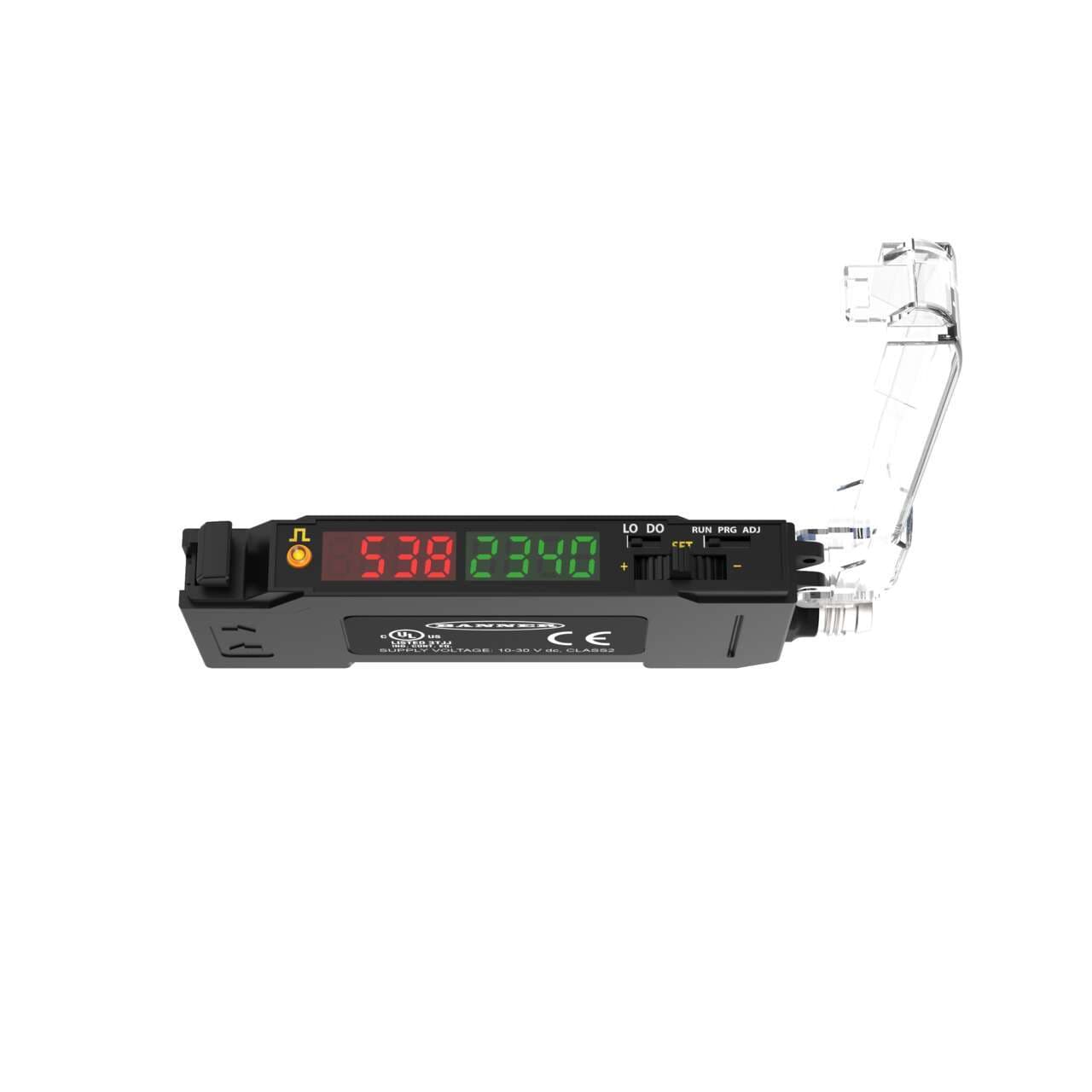

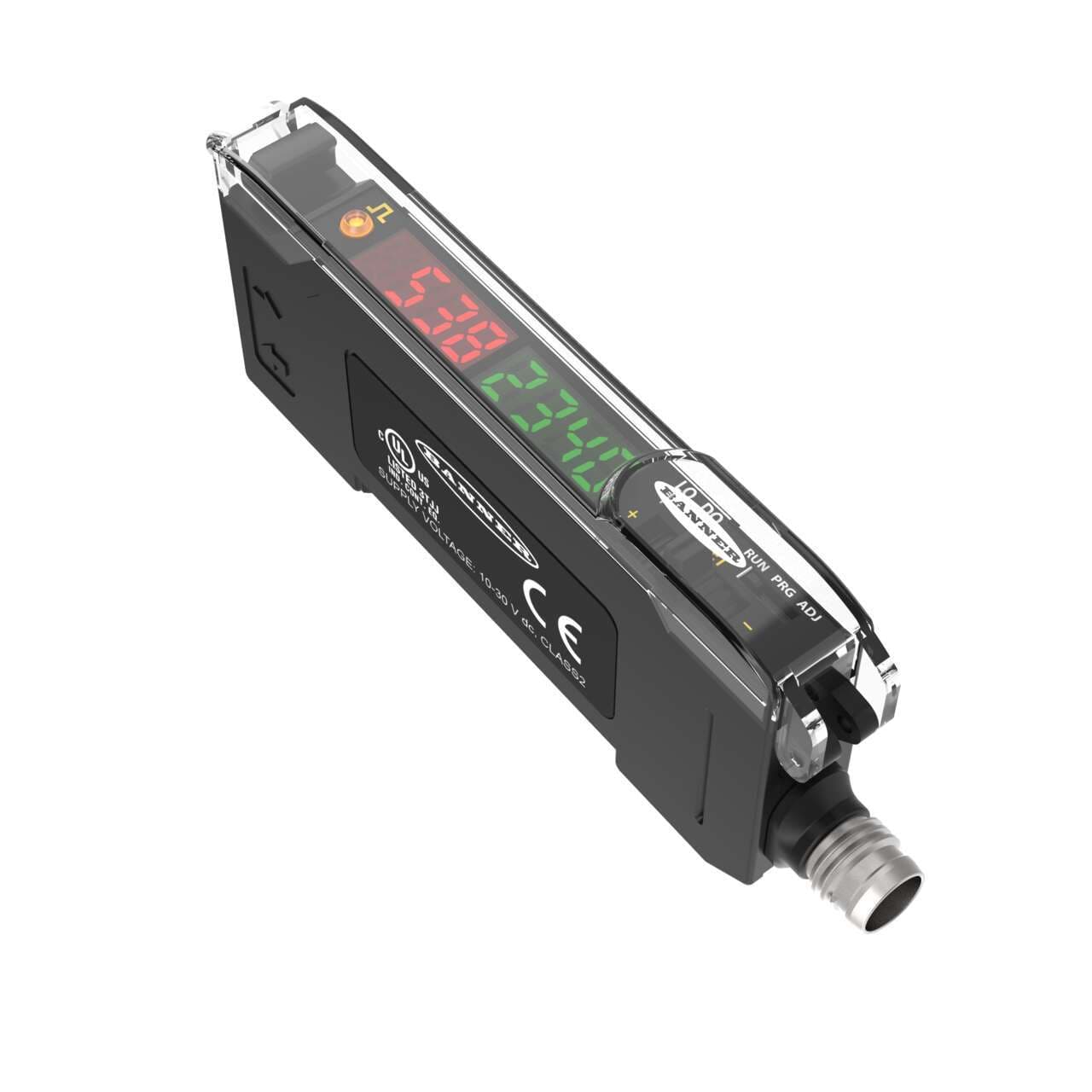

Banner Engineering DF-G2W-NS-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits visible white light with a wavelength range of 450-650 nm and boasts a rapid response time of 10µs (0.00001 s). It features 1 x digital output (NPN transistor) and is shaped rectangularly. As part of the DF-G2 Expert series, this high-speed dual-display fiber optic sensor amplifier includes functions such as TEACH mode and is pre-equipped with a 4-pin Pico-style M8 connector for connections. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal.
![DF-G2W-NS-Q7](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F4acb201f-31da-4463-b335-a82b67c01a74.jpeg&w=3840&q=75)
Banner Engineering DF-G2W-NS-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits visible white light with a wavelength range of 450-650 nm and boasts a rapid response time of 10µs (0.00001 s). It features 1 x digital output (NPN transistor) and is shaped rectangularly. As part of the DF-G2 Expert series, this high-speed dual-display fiber optic sensor amplifier includes functions such as TEACH mode and is pre-equipped with a 4-pin Pico-style M8 connector for connections. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal.
Product details
- Application: Registration MarkYes
- Housing MaterialThermoplastic
- IO LinkNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Special Feature: Bussable PowerNo
- Feature: Timing (Hold/Delay)Yes
- Indicator Display TypeDual Digital Displays
- Minimum response time (ms).01
- Delay at Power-up (ms)500
- Power Supply/Supply Voltage10-30 V dc
- AdjustmentsTeach Button
- NEMA RatingNEMA 1
- Max Op. Temperature (°C)55
- Special Feature: Remote TeachYes
- Crosstalk AvoidanceYes
- Intrinsically SafeNo
- Min Op. Temperature (°C)-10
- Max Op. Relative Humidity (%)90% @ 60°C
- IP RatingIP50
- Number of Pins4
- Repeatability (µs)5 to 165
- Output Type (Specific)Single Discrete
- Quick Disconnect TypeM8 (Pico)
- OutputNPN
- Input/OutputDiscrete
- ConnectionIntegral QD
- Fiber TypePlastic and Glass
- Color LED - AmplifiersWhite
- Primary Housing MaterialThermoplastic
- PowerDC
- Housing StyleDIN Rail
- Sub-range nameDF-G2 Expert series
- Product series / family nameFiber optic amplifiers
- DisplayLED 4 digits x 2 (red + green)
- Connection typePre-equipped with 4-pin Pico-style M8 connector
- Main functionAmplifier for sensor
- FunctionsHigh-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- ShapeRectangular
- Degree of protectionIP50 NEMA 1
- Equivalent toDFG2WNSQ7
- Primary brandBanner Engineering
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs1 x digital output (NPN transistor)
- Ambient air temperature for operation-10...+55 °C
- Light ColorVisible white
- Materialthermoplastic housing
- Wavelength450-650 nm
- Mounting modeDIN rail mounting
- Order code / Manufacturer SKU87615
- Compliant with standard(s)cULus CE
