Powermatic Associates Logo

DEE2R-88D Banner Cordsets

DEE2R-88D on Powermatic Associates
Banner
  • DEE2R-88D
  • DEE2R-88D

Part#:DEE2R-88D

Alt. Part#:94306

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

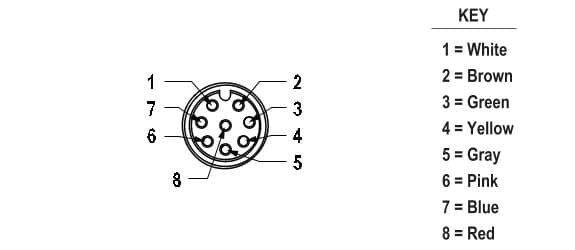

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 2.44 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Number of Conductors
    8
  • Secondary AWG
    22
  • Shield/No Shield
    No Shield
  • Secondary Orientation
    Straight
  • Secondary Gender
    Male
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Connector Type
    EURO
  • Primary Gender
    Female
  • Primary AWG
    22
  • Primary Number of Conductors
    8
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • IP Rating
    IP68
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Primary Connector Type
    EURO
  • Connector Body Material/Color
    PUR Black
  • Number of Contacts
    8
  • Outside Cable Diameter (mm)
    6
  • Current Rating (A)
    2.0
  • Cordset Length (m)
    2.44
  • Minimum Temp. (°C)
    -40
  • Coupling Material/Color
    Nickel Plated Brass
  • Maximum Temp. (°C)
    105
  • Cable Jacket Color
    Yellow
  • Cable Jacket Material
    PVC
  • Trunk Length (m)
    No Trunk
  • Number of Connectors
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEE2R-88D on Powermatic Associates is $42.00. Order now.

About the product

Banner Engineering DEE2R-88D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring an 8-pin Euro-style M12 female connector and an 8-pin Euro-style M12 male connector. The cable is constructed from PVC with a chrome-plated brass coupling nut, ensuring durability. It has a diameter of 6mm and a length of 2.43m, encased in yellow sheathing. This part operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68. It is rated for a voltage of 60Vac and 75Vdc, making it suitable for a variety of automation applications.
