D10INFPQ
Banner
Product Lifecycle: Active
Banner Engineering D10INFPQ is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a polycarbonate cover, measuring 11 mm in width, 36 mm in depth, and 69 mm in height. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It is equipped with 1 x analog output (4-20mA), 2 x digital outputs (NPN transistor), and operates with a supply voltage of 12Vdc-24Vdc. The D10INFPQ, part of the D10 Expert series, utilizes a visible red light with a wavelength of 680 nm and boasts a rapid response time of 50µs / 0.00005 s. Its design incorporates TEACH mode for high-performance fiber optic sensor amplification and comes pre-equipped with a 6-pin Pico-style M8 connector for connectivity.

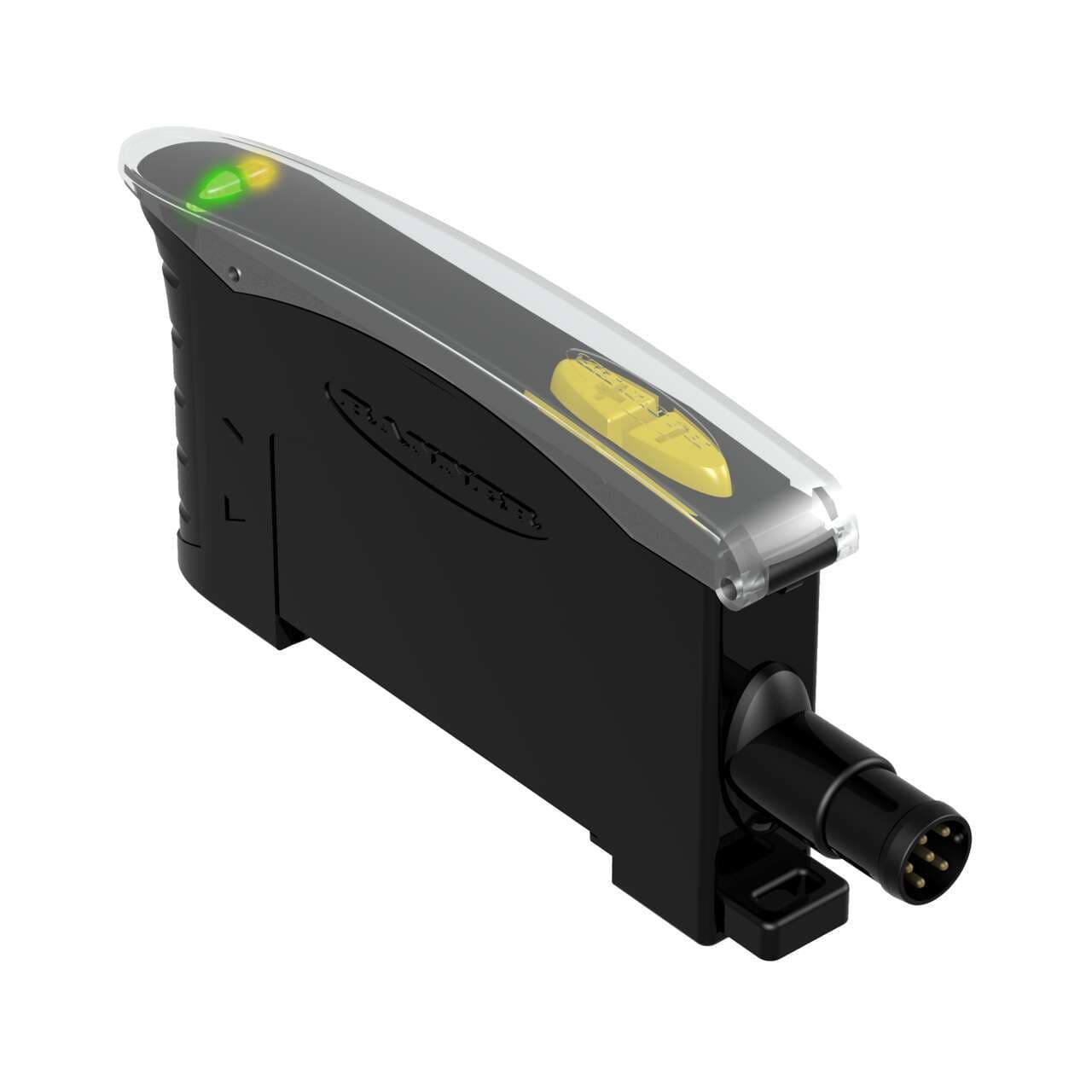

![D10INFPQ](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F9bb0666f-8503-4cd7-a269-3743f40b97c9.jpeg&w=3840&q=75)
Banner Engineering D10INFPQ is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a polycarbonate cover, measuring 11 mm in width, 36 mm in depth, and 69 mm in height. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It is equipped with 1 x analog output (4-20mA), 2 x digital outputs (NPN transistor), and operates with a supply voltage of 12Vdc-24Vdc. The D10INFPQ, part of the D10 Expert series, utilizes a visible red light with a wavelength of 680 nm and boasts a rapid response time of 50µs / 0.00005 s. Its design incorporates TEACH mode for high-performance fiber optic sensor amplification and comes pre-equipped with a 6-pin Pico-style M8 connector for connectivity.
Product details
- Feature: AudibleNo
- Feature: Timing (Hold/Delay)Yes
- IO LinkNo
- Housing MaterialThermoplastic
- Feature: Hazardous AreaNo
- Analog Output4 to 20 mA
- Special Feature: Bussable PowerNo
- AdjustmentsTeach Button
- Minimum response time (ms).05
- Indicator Display TypeSingle Digital Display
- Delay at Power-up (ms)1000
- Power Supply/Supply Voltage12-24 V dc
- Crosstalk AvoidanceYes
- Max Op. Relative Humidity (%)90% @ 50°C
- Intrinsically SafeNo
- Special Feature: Remote TeachYes
- Min Op. Temperature (°C)-10
- NEMA RatingNEMA 1
- Max Op. Temperature (°C)55
- IP RatingIP50
- Output Type (Specific)Analog & Discrete
- Quick Disconnect TypeM8 (Pico)
- Repeatability (µs)25 to 100
- Number of Pins6
- Primary Housing MaterialThermoplastic
- Input/OutputAnalog & Discrete
- ConnectionIntegral QD
- Color LED - AmplifiersRed
- OutputNPN
- Fiber TypePlastic and Glass
- PowerDC
- Housing StyleDIN Rail
- Supply voltage (DC)12Vdc-24Vdc
- ShapeRectangular
- Digital outputs2 x digital outputs (NPN transistors)
- Technical compatibility withplastic fiber optic cable
- Net Width (mm)10.5 mm
- Sub-range nameD10 Expert series
- Light ColorVisible red
- Wavelength680 nm
- Materialthermoplastic housing Polycarbonate cover
- Product series / family nameFiber optic amplifiers
- Connection typePre-equipped with 6-pin Pico-style M8 connector
- Degree of protectionIP50 NEMA 1
- Compliant with standard(s)cURus CE
- Net Depth (mm)35.9 mm
- Main functionAmplifier for sensor
- DisplayLED 4 digits display
- Analog outputs1 x analog output (4-20mA)
- Contentsmounting bracket M3 hardware
- Ambient air temperature for operation-10...+55 °C
- Primary brandBanner Engineering
- FunctionsHigh-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Mounting modeDIN rail mounting
- Order code / Manufacturer SKU62386
- Net Height (mm)68.1 mm
