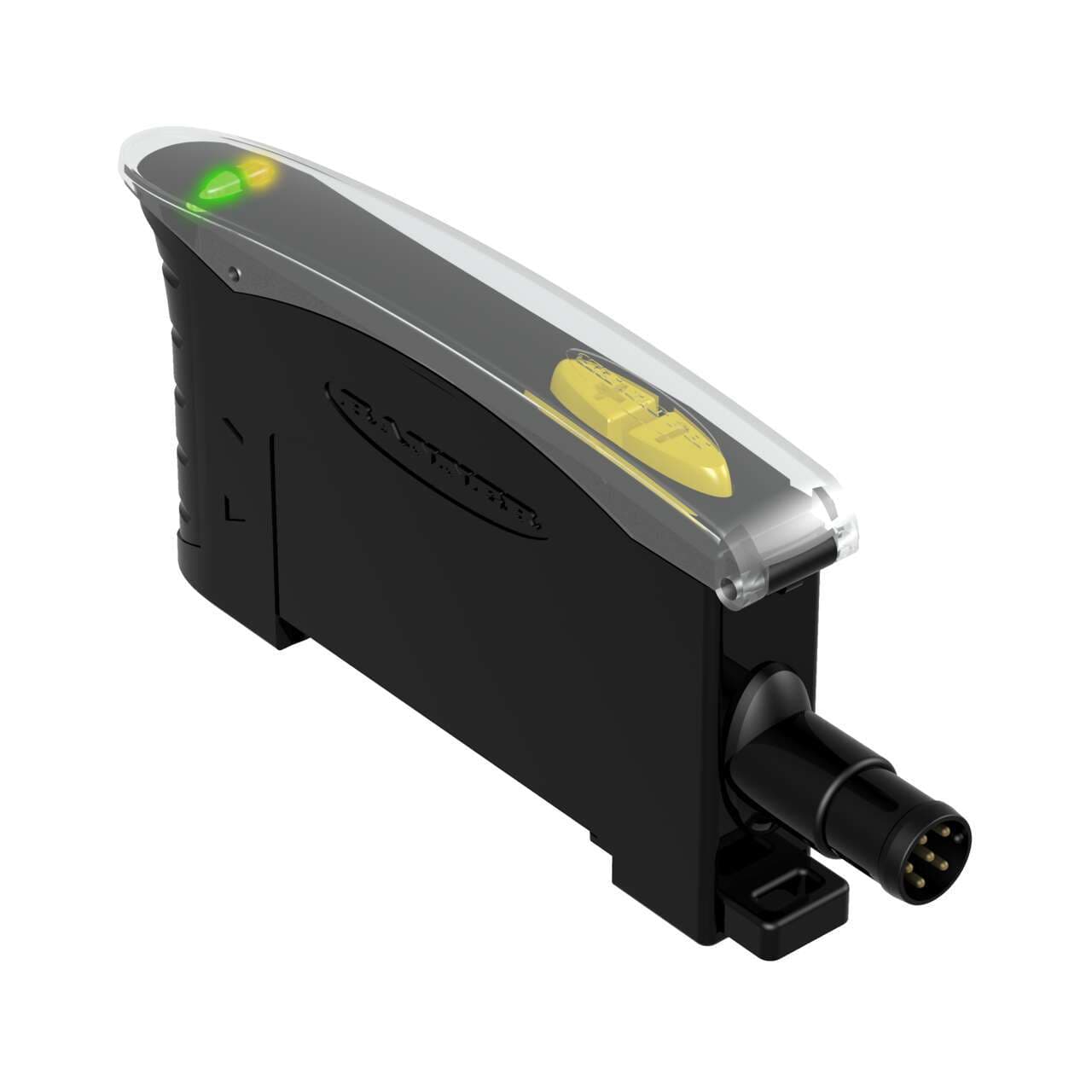

D10IPFPGQ Banner Sensor Accessories
Part#:D10IPFPGQ
Alt. Part#:64571
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
D10 Expert: Green Beam Plastic Fiber; Range: Depends on Fiber; Input: 12-24 V dc; Output: PNP 4-20 mA; M8 Integral QD
Product Details
- Weight 81.64656 g
- Country Of Origin US
- Housing Material Thermoplastic
- Feature: Timing (Hold/Delay) Yes
- Feature: Audible No
- Feature: Hazardous Area No
- IO Link No
- Special Feature: Bussable Power No
- Analog Output 4 to 20 mA
- Indicator Display Type Single Digital Display
- Minimum response time (ms) .05
- Delay at Power-up (ms) 1000
- Intrinsically Safe No
- Power Supply/Supply Voltage 12-24 V dc
- Adjustments Teach Button
- Crosstalk Avoidance Yes
- Max Op. Relative Humidity (%) 90% @ 50°C
- Special Feature: Remote Teach Yes
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- NEMA Rating NEMA 1
- IP Rating IP50
- Repeatability (µs) 25 to 100
- Number of Pins 6
- Output Type (Specific) Analog & Discrete
- Quick Disconnect Type M8 (Pico)
- Output PNP
- Connection Integral QD
- Color LED - Amplifiers Green
- Fiber Type Plastic and Glass
- Input/Output Analog & Discrete
- Primary Housing Material Thermoplastic
- Housing Style DIN Rail
- Power DC
- Product series / family name Fiber optic amplifiers
- Wavelength 525 nm
- Mounting mode DIN rail mounting
- Main function Amplifier for sensor
- Shape Rectangular
- Material thermoplastic housing Polycarbonate cover
- Order code / Manufacturer SKU 64571
- Net Depth (mm) 35.9 mm
- Display LED 4 digits display
- Light Color Visible green
- Digital outputs 2 x digital outputs (PNP transistors)
- Ambient air temperature for operation -10...+55 °C
- Sub-range name D10 Expert series
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-equipped with 6-pin Pico-style M8 connector
- Compliant with standard(s) cURus CE
- Technical compatibility with plastic fiber optic cable
- Contents mounting bracket M3 hardware
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-24Vdc
- Degree of protection IP50 NEMA 1
- Net Height (mm) 68.1 mm
- Analog outputs 1 x analog output (4-20mA)
- Net Width (mm) 10.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10IPFPGQ on Powermatic Associates is $379.00. Order now.
About the product
Banner Engineering D10IPFPGQ is an amplifier for sensors, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers 1 x analog output (4-20mA) for connectivity. It is rated with a degree of protection of IP50 NEMA 1 and emits a visible green light with a wavelength of 525 nm. The response time is notably quick at 50µs / 0.00005 s, and it includes 2 x digital outputs (PNP transistor) for enhanced functionality. The D10IPFPGQ, part of the D10 Expert series, is rectangular in shape and incorporates a TEACH mode design for ease of use. It connects via a pre-equipped 6-pin Pico-style M8 connector and requires a supply voltage of 12Vdc-24Vdc. The net dimensions are 11 mm in width, 36 mm in depth, and 69 mm in height, making it a compact and versatile choice for high-performance fiber optic sensor amplification.
