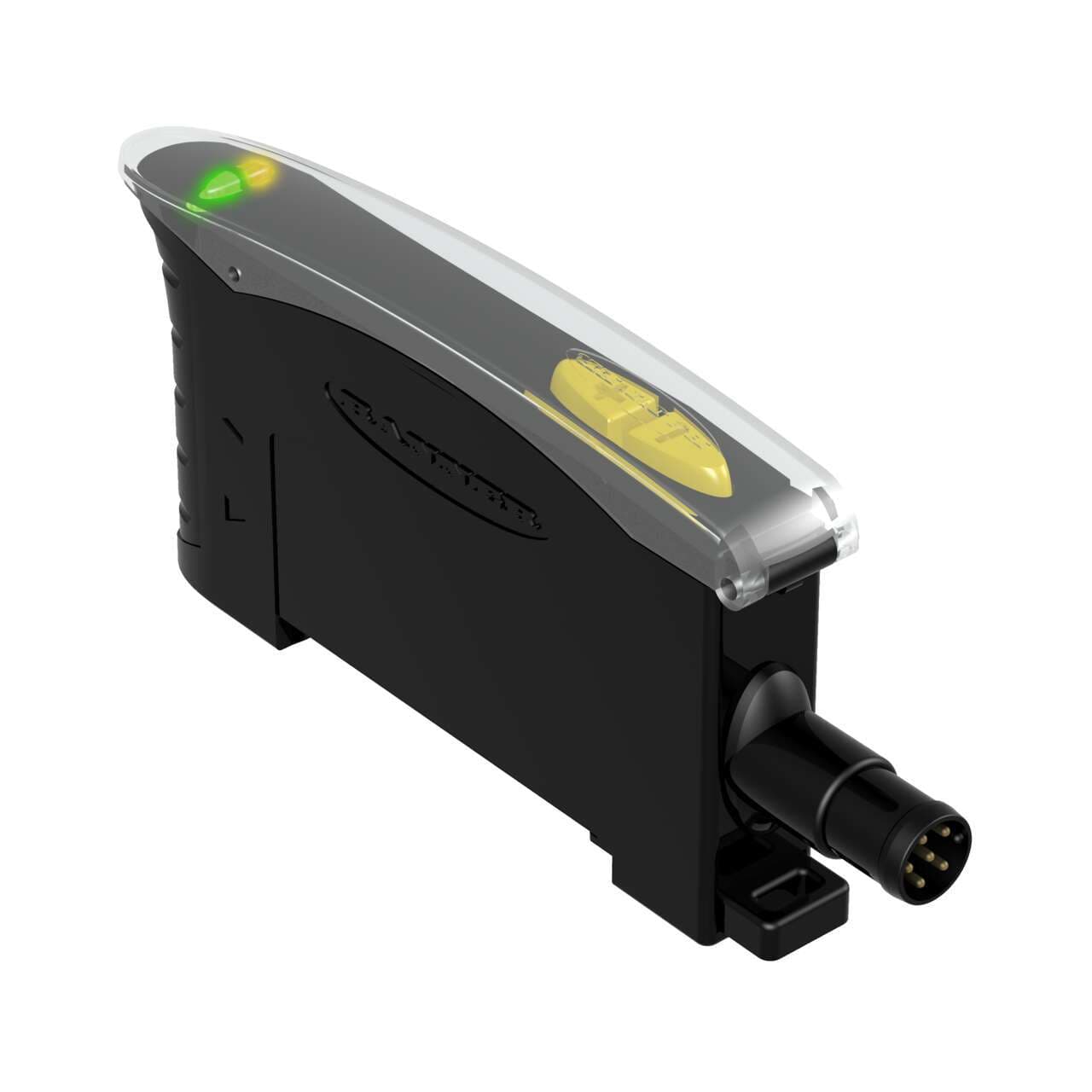

D10IPFPQ Banner Sensor Accessories
Part#:D10IPFPQ
Alt. Part#:62389
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
D10 Expert: Red Beam Plastic Fiber; Range: Depends on Fiber; Input: 12-24 V dc; Output: PNP 4-20 mA; M8 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin CN
- Housing Material Thermoplastic
- IO Link No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
- Minimum response time (ms) .05
- Analog Output 4 to 20 mA
- Special Feature: Bussable Power No
- Delay at Power-up (ms) 1000
- Power Supply/Supply Voltage 12-24 V dc
- Indicator Display Type Single Digital Display
- Adjustments Teach Button
- Connection Integral QD
- Intrinsically Safe No
- Min Op. Temperature (°C) -10
- Crosstalk Avoidance Yes
- Special Feature: Remote Teach Yes
- Max Op. Relative Humidity (%) 90% @ 50°C
- Output PNP
- Fiber Type Plastic and Glass
- Color LED - Amplifiers Red
- IP Rating IP50
- Number of Pins 6
- NEMA Rating NEMA 1
- Max Op. Temperature (°C) 55
- Quick Disconnect Type M8 (Pico)
- Output Type (Specific) Analog & Discrete
- Input/Output Analog & Discrete
- Repeatability (µs) 25 to 100
- Primary Housing Material Thermoplastic
- Power DC
- Housing Style DIN Rail
- Primary brand Banner Engineering
- Display LED 4 digits display
- Connection type Pre-equipped with 6-pin Pico-style M8 connector
- Compliant with standard(s) cURus CE
- Net Height (mm) 68.1 mm
- Main function Amplifier for sensor
- Light Color Visible red
- Mounting mode DIN rail mounting
- Material thermoplastic housing Polycarbonate cover
- Order code / Manufacturer SKU 62389
- Technical compatibility with plastic fiber optic cable
- Product series / family name Fiber optic amplifiers
- Wavelength 680 nm
- Digital outputs 2 x digital outputs (PNP transistors)
- Contents mounting bracket M3 hardware
- Net Depth (mm) 35.9 mm
- Sub-range name D10 Expert series
- Shape Rectangular
- Analog outputs 1 x analog output (4-20mA)
- Ambient air temperature for operation -10...+55 °C
- Supply voltage (DC) 12Vdc-24Vdc
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Degree of protection IP50 NEMA 1
- Net Width (mm) 10.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10IPFPQ on Powermatic Associates is $379.00. Order now.
About the product
Banner Engineering D10IPFPQ is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It has a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers one analog output (4-20mA) alongside two digital outputs (PNP transistor), ensuring versatile connectivity options. It is protected to IP50 NEMA 1 standards and emits a visible red light with a wavelength of 680 nm. The D10IPFPQ boasts a rapid response time of 50µs / 0.00005 s. It is part of the D10 Expert series and incorporates a TEACH mode for high-performance fiber optic sensor amplification. The design includes a pre-equipped 6-pin Pico-style M8 connector for straightforward connection and requires a supply voltage of 12Vdc-24Vdc. The part's shape is rectangular, with net dimensions of 36 mm in depth and 69 mm in height.
