D10INFP Banner Sensor Accessories
Part#:D10INFP
Alt. Part#:62385
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description

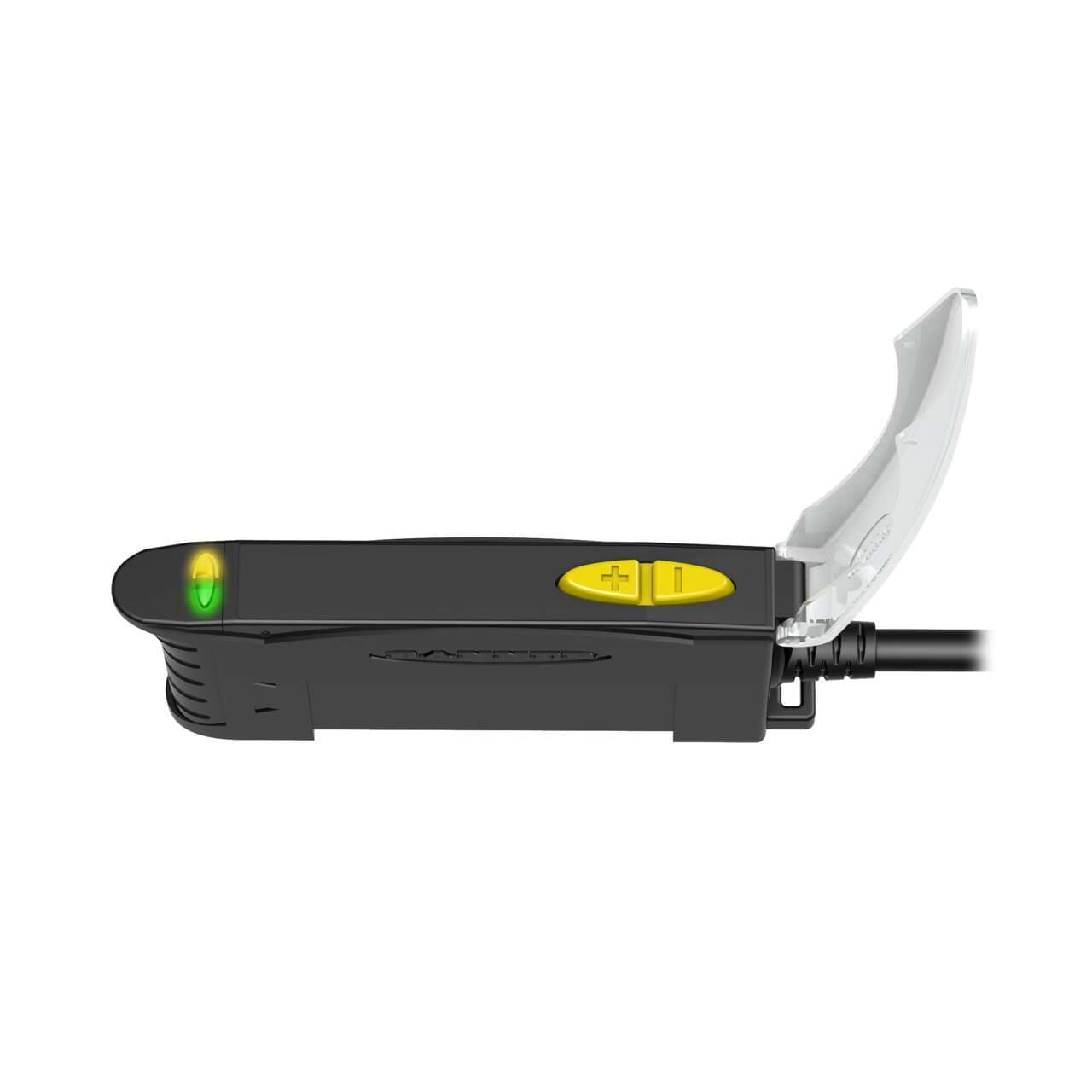

D10 Expert: Red Beam Plastic Fiber; Range: Depends on Fiber; Input: 12-24 V dc; Output: NPN 4-20 mA; 2 m (6.5 ft) Cable
Product Details
- Weight 136.0776 g
- Country Of Origin CN
- Feature: Audible No
- IO Link No
- Housing Material Thermoplastic
- Analog Output 4 to 20 mA
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
- Special Feature: Bussable Power No
- Minimum response time (ms) .05
- Indicator Display Type Single Digital Display
- Delay at Power-up (ms) 1000
- Power Supply/Supply Voltage 12-24 V dc
- Adjustments Teach Button
- Crosstalk Avoidance Yes
- Intrinsically Safe No
- Special Feature: Remote Teach Yes
- Max Op. Relative Humidity (%) 90% @ 50°C
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- NEMA Rating NEMA 1
- IP Rating IP50
- Number of Pins 6
- Repeatability (µs) 25 to 100
- Output Type (Specific) Analog & Discrete
- Quick Disconnect Type No QD
- Connection Cable
- Output NPN
- Primary Housing Material Thermoplastic
- Cable Length (m) 2
- Housing Style DIN Rail
- Fiber Type Plastic and Glass
- Color LED - Amplifiers Red
- Input/Output Analog & Discrete
- Power DC
- Product series / family name Fiber optic amplifiers
- Light Color Visible red
- Degree of protection IP50 NEMA 1
- Net Height (mm) 68.1 mm
- Sub-range name D10 Expert series
- Shape Rectangular
- Contents mounting bracket M3 hardware
- Primary brand Banner Engineering
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Analog outputs 1 x analog output (4-20mA)
- Technical compatibility with plastic fiber optic cable
- Net Depth (mm) 35.9 mm
- Supply voltage (DC) 12Vdc-24Vdc
- Wavelength 680 nm
- Digital outputs 2 x digital outputs (NPN transistors)
- Material thermoplastic housing Polycarbonate cover
- Order code / Manufacturer SKU 62385
- Net Width (mm) 10.5 mm
- Main function Amplifier for sensor
- Display LED 4 digits display
- Mounting mode DIN rail mounting
- Compliant with standard(s) cURus CE
- Ambient air temperature for operation -10...+55 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10INFP on Powermatic Associates is $379.00. Order now.
About the product
Banner Engineering D10INFP is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It has a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers one analog output (4-20mA) for connectivity. It is rated with a degree of protection of IP50 NEMA 1 and emits visible red light with a wavelength of 680 nm. The D10INFP boasts a rapid response time of 50µs / 0.00005 s and includes two digital outputs (NPN transistor). Its rectangular shape and high-performance fiber optic sensor amplifier functionality are part of the D10 Expert series. The design incorporates TEACH mode for ease of use and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It requires a supply voltage of 12Vdc-24Vdc and has a net depth of 36 mm with a net height of 69 mm.
