Powermatic Associates Logo

D10DPFPG W/30 Banner Electronic Components

D10DPFPG W/30 on Powermatic Associates
Banner

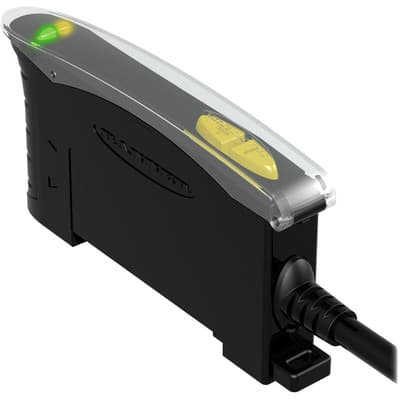

Part#:D10DPFPG W/30

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

Range: depends on the fiber; Input: 12-24 V dc

Product Details

  • IO Link
    No
  • Housing Material
    Thermoplastic
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Special Feature: Bussable Power
    No
  • Minimum response time (ms)
    .05
  • Adjustments
    Teach Button
  • Delay at Power-up (ms)
    1000
  • Intrinsically Safe
    No
  • Crosstalk Avoidance
    Yes
  • Special Feature: Remote Teach
    Yes
  • Power Supply/Supply Voltage
    12-24 V dc
  • Indicator Display Type
    Single Digital Display
  • NEMA Rating
    NEMA 1
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Max Op. Temperature (°C)
    55
  • Min Op. Temperature (°C)
    -10
  • Number of Pins
    6
  • IP Rating
    IP50
  • Output Type (Specific)
    Dual Discrete
  • Quick Disconnect Type
    No QD
  • Repeatability (µs)
    25 to 100
  • Cable Length (m)
    9
  • Color LED - Amplifiers
    Green
  • Power
    DC
  • Connection
    Cable
  • Fiber Type
    Plastic and Glass
  • Primary Housing Material
    Thermoplastic
  • Output
    PNP
  • Input/Output
    Discrete
  • Housing Style
    DIN Rail

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
