Part#:D10DNCFPQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

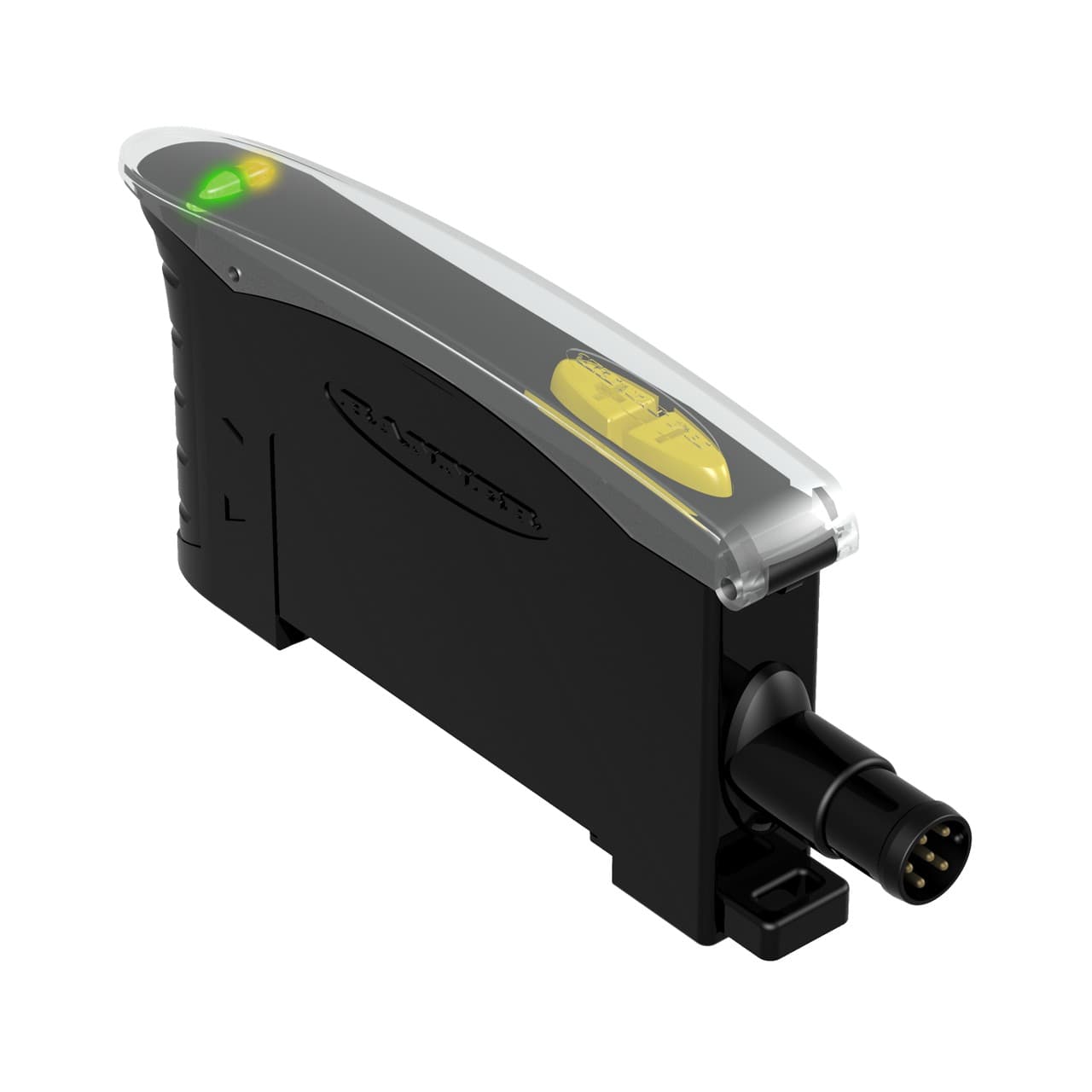

Banner Engineering D10DNCFPQ is an amplifier for sensor applications, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits visible red light with a wavelength of 680 nm and boasts a rapid response time of 0.15ms. The D10DNCFPQ is equipped with 2 x digital outputs (NPN transistor) and has a rectangular shape. It is part of the D10 Expert series and incorporates high-performance fiber optic sensor amplifier functions, requiring TEACH mode for the PFCVA fiber optic array. The connection is facilitated through a pre-equipped 6-pin Pico-style M8 connector, and it operates on a supply voltage of 12Vdc-24Vdc. The net dimensions include a depth of 36 mm and a height of 69 mm.

Product Details

  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Audible
    No
  • Application: Object Counting
    Yes
  • Special Feature: Bussable Power
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Indicator Display Type
    Single Digital Display
  • Minimum response time (ms)
    .15
  • Intrinsically Safe
    No
  • Adjustments
    Teach Button
  • Delay at Power-up (ms)
    1000
  • Special Feature: Remote Teach
    Yes
  • Power Supply/Supply Voltage
    12-24 V dc
  • Number of Pins
    6
  • Max Op. Temperature (°C)
    55
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Min Op. Temperature (°C)
    -10
  • IP Rating
    IP50
  • NEMA Rating
    NEMA 1
  • Repeatability (µs)
    50 to 100
  • Output Type (Specific)
    Single Discrete
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Discrete
  • Housing Style
    DIN Rail
  • Color LED - Amplifiers
    Red
  • Quick Disconnect Type
    M8 (Pico)
  • Output
    NPN
  • Fiber Type
    Plastic and Glass
  • Power
    DC
  • Connection
    Integral QD
  • Primary brand
    Banner Engineering
  • Display
    LED 4 digits display
  • Wavelength
    680 nm
  • Digital outputs
    2 x digital outputs (NPN transistors)
  • Contents
    mounting bracket M3 hardware
  • Sub-range name
    D10 Expert series
  • Connection type
    Pre-equipped with 6-pin Pico-style M8 connector
  • Ambient air temperature for operation
    -10...+55 °C
  • Main function
    Amplifier for sensor
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Shape
    Rectangular
  • Degree of protection
    IP50 NEMA 1
  • Order code / Manufacturer SKU
    10380
  • Product series / family name
    Fiber optic amplifiers
  • Light Color
    Visible red
  • Material
    thermoplastic housing Polycarbonate cover
  • Net Height (mm)
    68.1 mm
  • Functions
    High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
  • Mounting mode
    DIN rail mounting
  • Compliant with standard(s)
    cURus CE
  • Net Depth (mm)
    35.9 mm
  • Technical compatibility with
    plastic fiber optic cable
  • Net Width (mm)
    10.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
