D10DNFP W-30 Banner Sensors & Transducers

Name: D10DNFP W-30
Brand: Banner

Part#:D10DNFP W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

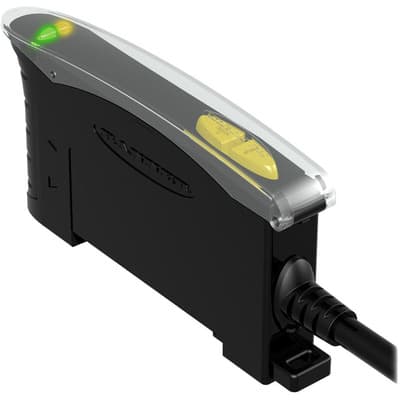

High-performance fiber optic sensor amplifier - Banner Engineering (Fiber optic amplifiers - D10 Expert series) - Part #62381 - Visible red light (680nm) - 2 x digital outputs (NPN transistors) - Supply voltage 12Vdc-24Vdc - Pre-wired with 30ft / 9m cable

Product Details

Main function
Amplifier for sensor
Supply voltage (DC)
12Vdc-24Vdc
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Material
thermoplastic housing Polycarbonate cover
Technical compatibility with
plastic fiber optic cable
Net Depth (mm)
35.9 mm
Primary brand
Banner Engineering
Display
LED 4 digits display
Light Color
Visible red
Digital outputs
2 x digital outputs (NPN transistors)
Sub-range name
D10 Expert series
Wavelength
680 nm
Mounting mode
DIN rail mounting
Compliant with standard(s)
cURus CE
Degree of protection
IP50 NEMA 1
Ambient air temperature for operation
-10...+55 °C
Equivalent to
D10DNFPW30
Product series / family name
Fiber optic amplifiers
Shape
Rectangular
Net Height (mm)
68.1 mm

Functions

High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode

Contents

mounting bracket M3 hardware

Net Width (mm)

10.5 mm

Order code / Manufacturer SKU

62381

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
