2CCS814001R0844 ABB Control Industrial Automation Components

2CCS814001R0844 on Powermatic Associates
ABB Control

Part#:2CCS814001R0844

Manufacturer:ABB Control

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

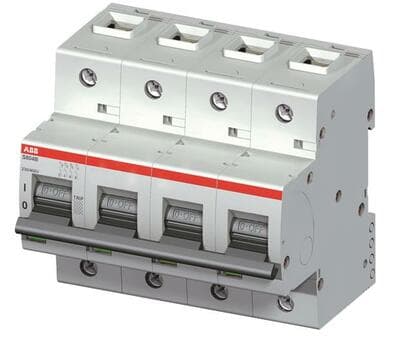

ABB 2CCS814001R0844 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 125A. It features a 4-pole (4P) configuration and is suitable for DIN rail mounting. The MCB has a rated impulse voltage (Uimp) of 6 kV, a rated insulation voltage (Ui) of 500 V, and a control voltage (AC) of 400 V. It is designed for a supply voltage of up to 10,000 operations. The net dimensions include a height of 106 mm, a width of 82.5 mm, and it supports a communication protocol width of 95 mm. This MCB is equipped with protection functions and is capable of 10,000 operations, indicating its durability and operational lifespan.

Product Details

  • Product series / family name
    S800B series
  • Rated current
    125A
  • Size in modules (1 module = 18mm)
    6 Module(s)
  • Electrical durability (with load)
    10 000 operations
  • Net Width (mm)
    106 mm
  • Secondary brand
    Stotz
  • Tripping curve
    C
  • Main function
    Miniature Circuit Breaker (MCB)
  • Poles
    4-poles (4P)
  • Ultimate short circuit current breaking capacity (Icu)
    16kA (230Vac) 16kA (230/400Vac) 10kA (240/415Vac) 10kA (300Vdc)
  • Compliant with standard(s)
    IEC60947-2 EN60898-1
  • Net Height (mm)
    95 mm
  • Primary brand
    ABB
  • Functions
    Miniature Circuit Breaker (MCB)
  • Connection type
    Screw-clamp connections
  • Service short circuit current breaking capacity (Ics)
    10kA (240/415Vac) 10kA (254/440Vac)
  • Mechanical durability (at no load)
    10 000 operations
  • Rated insulation voltage (Ui)
    500 V
  • Net Depth (mm)
    82.5 mm
  • Rated Voltage (AC) - Phase-to-phase
    400 V
  • Degree of pollution
    3
  • Mounting mode
    DIN rail
  • Rated impulse voltage (Uimp)
    6 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
