2CCS884001R0201 ABB Control Industrial Automation Components

2CCS884001R0201 on Powermatic Associates
ABB Control

Part#:2CCS884001R0201

Manufacturer:ABB Control

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

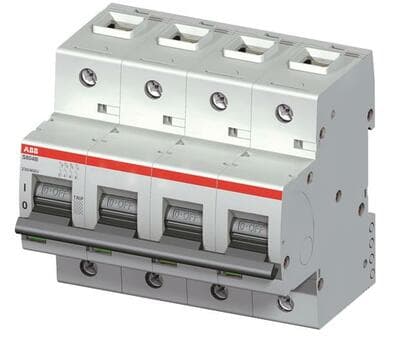

ABB 2CCS884001R0201 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 20A. It operates at a rated voltage of 500Vdc and features a 4-pole (4P) configuration. The MCB has a rated impulse voltage (Uimp) of 8 kV and a rated insulation voltage (Ui) of 500 V. It is designed for DIN rail mounting and is capable of 10,000 operations. The device has a net height of 106 mm, a net width of 82.5 mm, and supports a control voltage (AC) of 440 V. It is specified for a maximum temperature of 15 kA.

Product Details

  • Poles
    4-poles (4P)
  • Mounting mode
    DIN rail
  • Mechanical durability (at no load)
    10 000 operations
  • Net Width (mm)
    106 mm
  • Secondary brand
    Stotz
  • Rated current
    20A
  • Ultimate short circuit current breaking capacity (Icu)
    25kA (240/415Vac) 15kA (254/440Vac)
  • Tripping curve
    D
  • Main function
    Miniature Circuit Breaker (MCB)
  • Connection type
    Screw-clamp connections
  • Size in modules (1 module = 18mm)
    6 Module(s)
  • Electrical durability (with load)
    10 000 operations
  • Rated Voltage (AC) - Phase-to-phase
    440 V
  • Primary brand
    ABB
  • Functions
    Miniature Circuit Breaker (MCB)
  • Rated Voltage (DC)
    500Vdc
  • Service short circuit current breaking capacity (Ics)
    18kA (240/415Vac) 10kA (254/440Vac)
  • Rated impulse voltage (Uimp)
    8 kV
  • Net Height (mm)
    95 mm
  • Product series / family name
    S800C series
  • Short circuit current breaking capacity (Icn)
    15 kA
  • Compliant with standard(s)
    IEC60947-2 EN60947-2 EN60898-1
  • Degree of pollution
    3
  • Rated insulation voltage (Ui)
    500 V
  • Net Depth (mm)
    82.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
