2CCS884001R0405 ABB Control Industrial Automation Components

2CCS884001R0405 on Powermatic Associates
ABB Control

Part#:2CCS884001R0405

Manufacturer:ABB Control

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

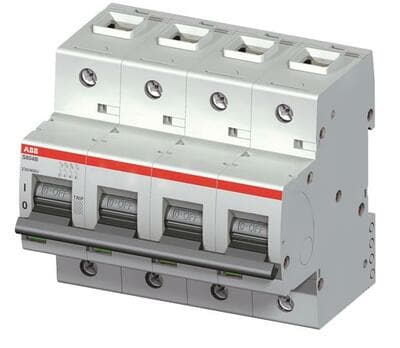

ABB 2CCS884001R0405 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections. It features a rated current of 40A and a rated voltage of 500Vdc. The device has a net height of 8 kV and a rated impulse voltage (Uimp) of 106 mm, with a net width accommodating 4-poles (4P). It offers protection functions at 500 V and has a rated insulation voltage (Ui) of 82.5 mm. This MCB is suitable for DIN rail mounting and is designed for 10,000 operations. It supports a control voltage (AC) of 440 V and has a secondary current classification of B. The maximum temperature it can withstand is 15 kA.

Product Details

  • Primary brand
    ABB
  • Rated current
    40A
  • Short circuit current breaking capacity (Icn)
    15 kA
  • Mechanical durability (at no load)
    10 000 operations
  • Net Width (mm)
    106 mm
  • Main function
    Miniature Circuit Breaker (MCB)
  • Ultimate short circuit current breaking capacity (Icu)
    25kA (240/415Vac) 15kA (254/440Vac)
  • Poles
    4-poles (4P)
  • Tripping curve
    B
  • Size in modules (1 module = 18mm)
    6 Module(s)
  • Rated Voltage (AC) - Phase-to-phase
    440 V
  • Secondary brand
    Stotz
  • Functions
    Miniature Circuit Breaker (MCB)
  • Connection type
    Screw-clamp connections
  • Mounting mode
    DIN rail
  • Rated impulse voltage (Uimp)
    8 kV
  • Net Height (mm)
    95 mm
  • Product series / family name
    S800C series
  • Rated Voltage (DC)
    500Vdc
  • Service short circuit current breaking capacity (Ics)
    18kA (240/415Vac) 10kA (254/440Vac)
  • Rated insulation voltage (Ui)
    500 V
  • Net Depth (mm)
    82.5 mm
  • Compliant with standard(s)
    IEC60947-2 EN60947-2 EN60898-1
  • Electrical durability (with load)
    10 000 operations
  • Degree of pollution
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
