787-1102 WAGO AC/DC Power Supplies

787-1102 on Powermatic Associates
WAGO

Part#:787-1102

Manufacturer:WAGO

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

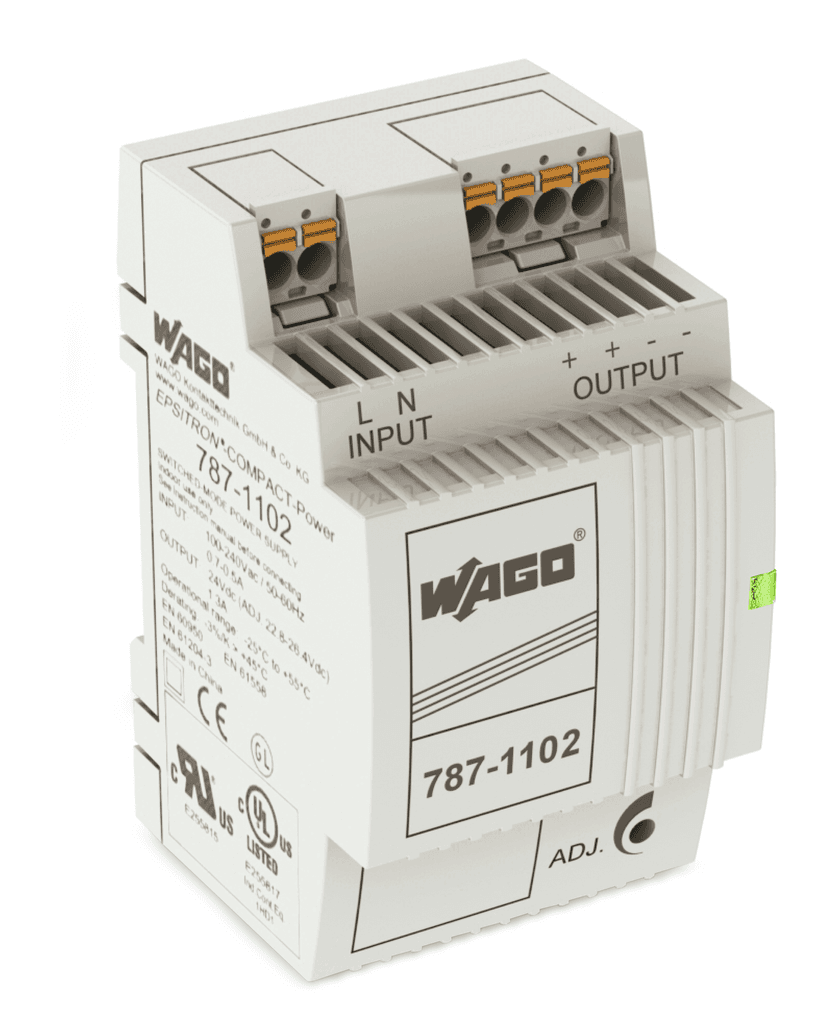

787-1102 WAGO - EPSITRON® COMPACT power supply; single-phase; output voltage 24 VDC; 1.3 A; with picoMAX connector

Product Details

  • Weight
    170.0000447 g
  • Country Of Origin
    China
  • HTS Code
    85044082900
  • Weight
    170.000 grams
  • Width
    2.126 inches, 54 millimeters
  • Strip Length
    0.39 inches, 10 millimeters
  • Package Type
    Box
  • Mounting Type
    DIN-35 Rail
  • Height
    3.504 inches, 89 millimeters
  • Flammability Class
    V0
  • Depth
    2.323 inches, 59 millimeters
  • Conductor Size
    12 american wire gauge, 2.5 millimeters
  • Country of Origin
    China

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

787-1102 WAGO
