741-236 WAGO Industrial Automation Components

741-236 on Powermatic Associates
WAGO

Part#:741-236

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

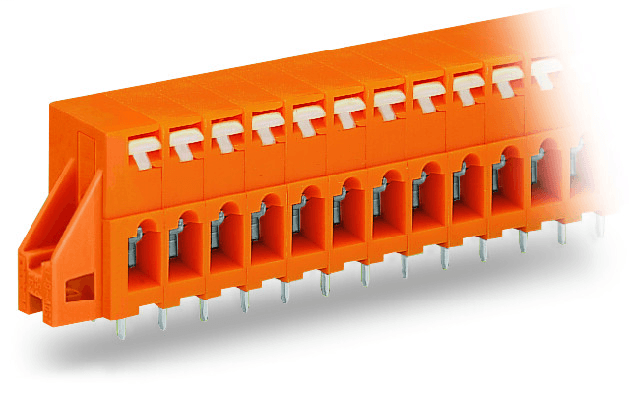

741-236 WAGO - Through-panel PCB terminal strip; 2 solder pins/pole; 6-pole; with integrated push-buttons; pin spacing 5.08 mm / 0.2 in; with fixing flanges; orange

Product Details

  • Weight
    8.829002322 g
  • Country Of Origin
    Switzerland
  • HTS Code
    85369010000
  • Insulation Material
    Polyamide
  • Depth
    0.504 inches, 12.8 millimeters
  • Package Type
    Box
  • Actuator
    Push-button
  • Flammability Class
    V0
  • Weight
    8.829 grams
  • Contact Material
    Copper
  • Color
    Orange
  • Mounting Type
    Feed-through Mounting, Mounting Flange, Panel Mounting
  • Height
    0.886 inches, 22.5 millimeters
  • Voltage
    250 volts, 300 volts
  • Conductor Size
    12 american wire gauge, 2.5 millimeters
  • Width
    1.567 inches, 39.8 millimeters
  • Current
    10 amperes, 16 amperes
  • Contact Type
    Tin
  • Strip Length
    0.24 inches, 6 millimeters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 741-236 on Powermatic Associates is $5.13. Order now.

About the product

WAGO 741-236 is an automation part with a short circuit breaking rating and electrical data adhering to IEC/EN 60664-1 standards. It features nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), with rated impulse voltages of 4kV for all categories and a rated current of 16A. UL and CSA approvals include ratings of 300V and 10A or 16A depending on the use group. The part has 6 connection points, supports CAGE CLAMP connection technology with push-button actuation, and accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including those with insulated or uninsulated ferrules. It has a pin spacing of 5.08mm, dimensions of 39.8mm in width, 22.5mm in height, 18.5mm height from the surface, and 12.8mm in depth, with a solder pin length of 4mm. The mounting options include mounting flange, feed-through mounting, and panel mounting, with a THT PCB contact type. The terminal strip is orange, made from Polyamide (PA66) with a V0 flammability class, and uses Chrome-Nickel spring steel for the clamping spring and tin-plated Electrolytic Copper for contacts. It operates within a temperature range of -60 to +105°C, weighs 8.8g, and complies with RoHS. The product is packaged in boxes of 100 units, with a country of origin CH and a GTIN of 4044918680004.
