723-612/019-000 WAGO Electrical Connector Accessories

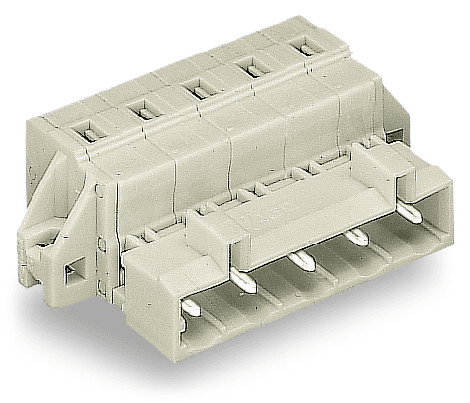

WAGO 723-612/019-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 12A. UL and CSA approvals include a rated voltage of 300V for UL (Use Group B and D) with rated currents of 15A and 10A respectively, and similarly for CSA. It features 12 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific capacities for ferruled conductors. The connector has a 12-pole configuration, with a pin spacing of 7.5mm, dimensions of 102.3mm in width, 14.3mm in height, and 27.5mm in depth. It offers variable coding, multiple mounting options including mounting flange, feed-through, and panel mounting, and includes anti-rotation protection. The male connector/plug is made from light gray Polyamide (PA66), with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel for the clamping spring and tin-plated Electrolytic Copper for contacts. It operates within a temperature range of -60 to +100°C, has a fire load of 0.459MJ, and weighs 23.2g. This product is RoHS compliant, packaged in boxes of 10, and manufactured in Germany with a GTIN of 4044918266260.
