723-611 WAGO Industrial Automation Components

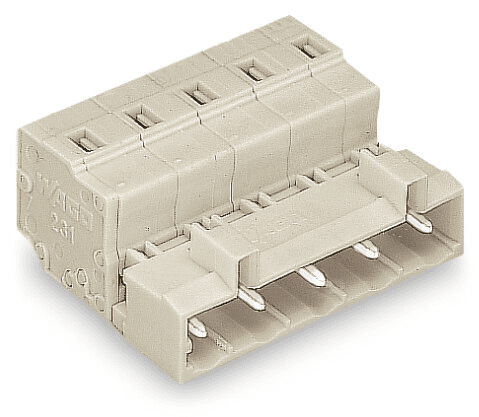

WAGO 723-611 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), all with a rated impulse voltage of 6kV and a rated current of 12A. UL and CSA approvals include ratings of 300V and 600V with currents ranging from 10A to 15A, depending on the use group. It features 11 connection points and potentials, with a single connection type and level utilizing CAGE CLAMP technology. The connector supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific strip lengths for optimal connection. The physical dimensions include a pin spacing of 7.5mm, width of 83.2mm, height of 14.3mm, and depth of 27.5mm. It offers variable coding, anti-rotation protection, and mismating protection but lacks a locking mechanism for the plug-in connection. The light gray connector is made from Polyamide (PA66) with a flammability class of UL94 V0, and chrome-nickel spring steel for the clamping spring. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 25 pieces, with a GTIN of 4044918266123 and a customs tariff number of 85366930000, indicating its origin in Germany.
