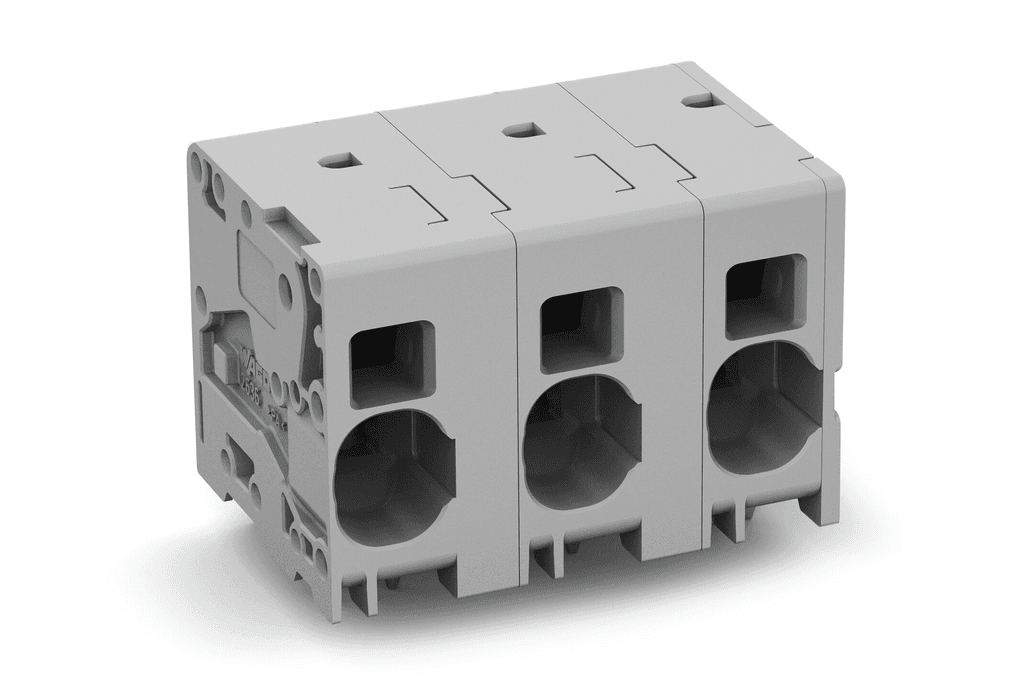

2636-1356 WAGO Industrial Automation Components

WAGO 2636-1356 is an automation part with a short circuit breaking rating and electrical data compliant with IEC/EN 60664-1 standards. It features a nominal voltage of 1000V for overvoltage categories III/2 and III/3, with a rated impulse voltage of 8kV. The rated current is 76A according to IEC/EN standards. Under UL 1059 approvals, it has rated voltages of 300V for Use Groups B and C, and 600V for Use Group D, with respective rated currents of 85A for Groups B and C, and 5A for Group D. CSA approvals indicate rated voltages of 300V for Use Groups B and C, and 600V for Use Group D, with a rated current of 66A for all. The part includes 6 connection points, supports a single connection type with push-in CAGE CLAMP technology, and accommodates solid and fine-stranded conductors ranging from 0.75 to 25mm2. It has a pole number of 6, pin spacing of 15mm, and dimensions of 86.6mm in width, 32.6mm in height, and 29.1mm in depth. The part is designed for feed-through mounting, with THT PCB contact and in-line solder pin arrangement. It is made from Polyamide (PA66) in gray, with a flammability class of V0 and uses Chrome-Nickel spring steel for the clamping spring. The contact material is Electrolytic Copper with tin plating. It operates within a temperature range of -60 to +105°C and is RoHS compliant without exemptions. The part is packaged in boxes of 24 pieces, with a country of origin in PL and a GTIN of 4055143861403.
