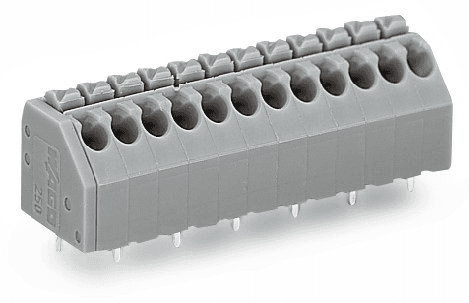

250-216 WAGO Terminal Blocks

WAGO 250-216 is an automation part designed for printed circuit connections, featuring a short circuit breaking rating as per IEC/EN 60664-1 standards. It supports a nominal voltage of 250V (III/3), 320V (III/2), and 630V (II/2) with a rated impulse voltage of 4kV across these categories. The rated current is 8A according to IEC/EN standards. UL and CSA approvals indicate a rated voltage of 300V and varied rated currents for different use groups, with UL ratings at 8A for Group B and 5A for Group D, and CSA ratings at 10A for both Groups B and D. This part accommodates 16 connection points and potentials, with a single connection type and level utilizing Push-in CAGE CLAMP technology and push-button actuation. It accepts solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 (24 to 16 AWG), including those with insulated or uninsulated ferrules. The strip length for connections is specified between 8.5 to 9.5mm, with a conductor connection direction to PCB at 45 degrees. Physical specifications include a pin spacing of 3.5mm, dimensions of 57.5mm in width, 16.7mm in height, and 12mm in depth, with a solder pin length of 3.4mm. The terminal is made from Polyamide (PA66) in gray, featuring a copper alloy clamping spring, tin contact plating, and meets the UL94 V0 flammability class. It operates within a temperature range of -60 to +105°C, is RoHS compliant without exemptions, and comes in boxes of 80 pieces with a weight of 7.7g per unit.
