TB-8M8Z-3P2-FS12 Turck I/O Junction Boxes

Name: TB-8M8Z-3P2-FS12
Brand: Turck
Price: 130.5 USD
Availability: InStock

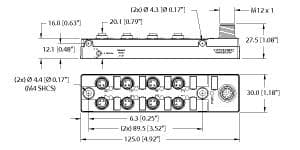

Turck TB-8M8Z-3P2-FS12 TB-8M8Z-3P2-FS12 Junction Box - Actuator/Sensor, 8-port, M8 snap, 3 pole I/O port with M12 homerun

Part#:TB-8M8Z-3P2-FS12

Manufacturer:Turck

Alt. Part#:U2-28313

Product Lifecycle:Active

In-stock parts: 3

Sep 28, 2024

TB-8M8Z-3P2-FS12 Junction Box - Actuator/Sensor, 8-port, M8 snap, 3 pole I/O port with M12 homerun

About the manufacturer: Turck is one of the manufacturers that offers I/O Junction Boxes that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TB-8M8Z-3P2-FS12 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
118 g
Approvals
CE, RoHS
Housing material
Plastic, PA 6 GF30
Homerun Exit Location
Top exit
Voltage
30 V
Homerun Type
M12 × 1
Number of ports
8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TB-8M8Z-3P2-FS12 Description

Turck TB-8M8Z-3P2-FS12 is a passive junction box within the TB series, featuring a top-exit homerun design. It is equipped with 1 LED (PNP circuit) per port and an additional power ON LED to indicate signal status for each of the 8 ports. The junction box is constructed from PA6-GF30 plastic housing in black and offers connection options through 8 x 3-pin M8 picofast snap connectors and a single 12-pin M12 eurofast homerun connector. Designed for surface mounting, it operates on a supply voltage of 30Vdc and is rated with a degree of protection IP67, making it suitable for various industrial applications. The connection capacity of this unit is 8-ports.

$130.50

Stock:

Select Qty:

$130.50

$130.50 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
