TB-4M8Z-3P2-1 Turck Industrial Automation Components

TB-4M8Z-3P2-1 on Powermatic Associates
Turck

Part#:TB-4M8Z-3P2-1

Manufacturer:Turck

Alt. Part#:UX14201

Product Lifecycle:Active

Get a quick Quote!

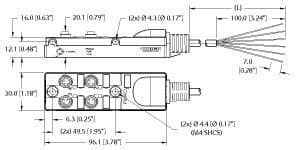

TB-4M8Z-3P2-1 Ø 8 mm, I/O Slot with Integral Homerun Cable

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TB-4M8Z-3P2-1 Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8536908530
  • Number of ports
    4
  • Homerun Exit Location
    Side exit
  • Housing material
    Plastic, PA 6 GF30
  • Approvals
    CE, RoHS
  • Voltage
    30 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TB-4M8Z-3P2-1 Description

Turck TB-4M8Z-3P2-1 is a passive junction box from the TB series, featuring a side-exit homerun design with 1 LED (PNP circuit) per port for signal indication and supports 1 signal per port. It is constructed with a PA6-GF30 plastic housing in black and includes 4 x 3-pin M8 picofast snap connectors. This model comes with a 1m / 3ft homerun cable terminated with bare end flying leads. It operates on a supply voltage of 30Vdc and offers a connection capacity of 4-ports. Designed for surface mounting, it provides a degree of protection rated at IP67.

Related documents TB-4M8Z-3P2-1 Specs

TB-4M8Z-3P2-1 English-1630968283059.pdf

Manufacturer warranty

$134.00

Request a quote, and we will send availability within minutes.

Select Qty:

$134.00

$134.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
