RU50U-S18-AP8X-H1141 Turck Ultrasonic Sensors

Turck RU50U-S18-AP8X-H1141 RU50U-S18-AP8X-H1141 Ultrasonic Sensor, Diffuse Mode Sensor
Turck

Part#:RU50U-S18-AP8X-H1141

Manufacturer:Turck

Alt. Part#:100000746

Product Lifecycle:Active

Get a quick Quote!

RU50U-S18-AP8X-H1141 Ultrasonic Sensor, Diffuse Mode Sensor

About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RU50U-S18-AP8X-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    39 g
  • Special features
    Compact
  • Ambient temperature
    -20…+50 °C
  • Design
    Threaded barrel
  • Operating voltage
    15…30 VDC
  • Electrical connection
    Connector, M12 × 1
  • Switching element function
    NO contact
  • Construction size
    M18 x 1
  • Function
    Proximity
  • Housing quality
    LCP
  • Housing material
    Plastic
  • Housing surface
    Yellow
  • Protection class
    IP67
  • Output function
    PNP
  • Radiation direction
    straight
  • Range
    50…500 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RU50U-S18-AP8X-H1141 Description

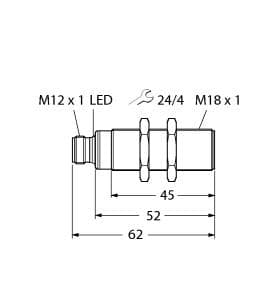

Turck RU50U-S18-AP8X-H1141 is an ultrasonic sensor from the RU50U series featuring a 20° sonic cone diffuse mode front sensing design. This sensor is equipped with ultrasonic sensor TEACH-by-wire functionality. It has a housing made of LCP (Liquid Crystal Polymer), with a sensing face composed of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. The connection is facilitated by a pre-equipped 4-pin M12 Eurofast QD male connector. It operates on a supply voltage of 15-30Vdc, with 24Vdc nominal. The ambient air temperature range for operation is between -20°C and +50°C. This sensor is rated with a degree of protection IP67 and comes in an M18 partially threaded barrel shape. It features 1 x digital output (20-30Vdc; PNP; 150mA max.), with a sensing distance of 50-500mm. The current consumption is 50mA under no-load conditions, and it has a maximum switching frequency of 9.6Hz. Protection functions include short-circuit (pulsed) and reverse polarity. Its operating mode is NO (Normally Open), and it has an M18 thread size.

Related documents RU50U-S18-AP8X-H1141 Specs

RU50U-S18-AP8X-H1141 English.pdf
