PSG 3M-3 Turck Cordsets

Name: PSG 3M-3
Brand: Turck
Price: 20.8 USD
Availability: InStock

Turck PSG 3M-3 PSG 3M-3 Actuator and Sensor Cordset, Connection Cable

Part#:PSG 3M-3

Manufacturer:Turck

Alt. Part#:U0135-32

Product Lifecycle:Active

In-stock parts: 7

Sep 28, 2024

PSG 3M-3 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PSG 3M-3 Turck price in the box on the right side or send a quick quote.

Product Details

Cable Jacket Color
Yellow
Approvals
UL Listed, CSA, CE, RoHS
Cable length (L)
3.0 m
Application
Actuator and Sensor
Connector A - Style
Straight, Male
Voltage
125 V
Connector A
M8 × 1
Current
4 A
Material coupling/housing A
Brass
Number of Conductors
3
Connector A - Number of Pins
3
Cable Jacket Material
PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PSG 3M-3 Description

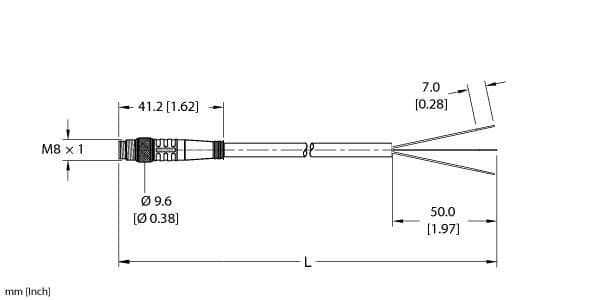

Turck PSG 3M-3 is a single-ended mating cable/cordset designed for various automation applications. It features a 4.4mm cable sheath outer diameter and is capable of handling a rated current of 4A. This part comes with a 3-pin M8 picofast male connector, which includes an M8x1 threaded coupling nut and bare end flying leads, falling under the M8 picofast to bare leads sub-range. It offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, ensuring its suitability for diverse environmental conditions. The cable is constructed with a nickel-plated brass coupling nut and a PVC jacket, with the sheath presented in yellow. It measures 30 meters (98 feet) in length and is rated for 125Vac, with a cross-section of 3 x #24AWG.

$20.80

Stock:

Select Qty:

$20.80

$20.80 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
