FS100-300L-30-2UPN8-H1141 Turck Industrial Automation Components
Part#:FS100-300L-30-2UPN8-H1141
Manufacturer:Turck
Alt. Part#:100000970
Product Lifecycle:Active
Get a quick Quote!

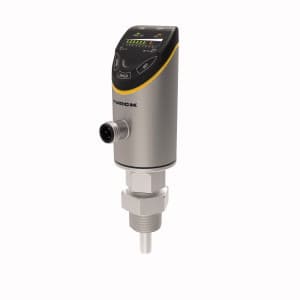

FS100-300L-30-2UPN8-H1141 Flow Sensor
About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the FS100-300L-30-2UPN8-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 374 g
- Country Of Origin DEU
- HTS Code 9026102040
- Ambient temperature -40…+85 °C
- Protection class IP66/IP67/IP69K
- Medium temperature -25…+85 °C
- Housing material Stainless steel, 1.4404 (AISI 316L)
- Electrical connection Connector, M12 × 1
- Immersion depth (L) 16.9 mm
- Design Immersion
- Communication protocol IO-Link
- Operating voltage 10…33 VDC
- Output function NO/NC programmable, PNP/NPN
- Bar length (L1) 45 mm
- Process connection G 1/2” male thread
- Medium liquids
- Function Flow monitoring
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
FS100-300L-30-2UPN8-H1141 Description
Turck FS100-300L-30-2UPN8-H1141 is a sensor designed for flow monitoring within the FS+ series. This compact, instrumentation insertion/inline probe flow monitor features a cylindrical body made from 1.4404 (316L) stainless steel housing and 1.4571 (316Ti) stainless steel for the wetted parts, along with an FKM O-ring. It is equipped with a 4-pin M12 Eurofast QD male connector and a G1/2" (1/2" BSPP) threaded male process port for connections. The sensor offers protection against short-circuit (pulsed) and reverse polarity. It is capable of detecting flow rates from 3cm/s to 3m/s (oil) at pressures up to 300bar (4351psi). The supply voltage requirement is 10-33Vdc (24Vdc nom.), and it can operate in medium temperatures ranging from -25°C to +85°C, with an ambient air temperature range for operation from -40°C to +85°C. The FS100-300L-30-2UPN8-H1141 provides a high degree of protection with an IP69K rating and includes 2 x digital outputs (10-33Vdc; NPN/PNP).
Related documents FS100-300L-30-2UPN8-H1141 Specs
Manufacturer warranty
$484.60
Request a quote, and we will send availability within minutes.
Select Qty:
$484.60
$484.60 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
