FEN20-4DIP-4DXP-DIN Turck I/O Modules
Part#:FEN20-4DIP-4DXP-DIN
Manufacturer:Turck
Alt. Part#:6931092
Product Lifecycle:Active
Get a quick Quote!
FEN20-4DIP-4DXP-DIN Compact IP20 Multiprotocol Ethernet I/O Station, 4 Digital PNP Inputs and 4 Configurable Digital PNP Channels
About the manufacturer: Turck is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the FEN20-4DIP-4DXP-DIN Turck price in the box on the right side or send a quick quote.
Product Details
- Ambient temperature -40…+70 °C
- Approvals UL
- Connection technology signal Screw terminal
- Signal type Digital input, Digital input/output, Digital output
- Protection class IP20
- Product Family FEN20
- Device type I/O Module, Compact station
- Fieldbus Protocol Modbus TCP, PROFINET, EtherNet/IP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
FEN20-4DIP-4DXP-DIN Description

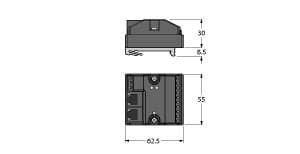

Turck FEN20-4DIP-4DXP-DIN is a digital block remote I/O module designed for multi-protocol support, including EtherNet/IP, Modbus TCP, and PROFINET, making it suitable for a wide range of industrial applications. This model, part of the FEN20 series, is mounted on a DIN rail and features a net width of 62.5 mm, a depth of 38.5 mm, and a height of 55 mm. It operates within an ambient air temperature range of -40 to +70°C and has a degree of protection rated at IP20. The device is equipped with 8 digital inputs (PNP), 4 of which can be configured as digital outputs (DO) with a maximum output of 1A. For connectivity, it includes 2 x RJ45 connectors for FIELDBUS and screw connections for power (PWR), requiring a 24Vdc supply voltage.
Related documents FEN20-4DIP-4DXP-DIN Specs
