BCT10-S30-UP6X2-H1151 Turck Capacitive Sensors

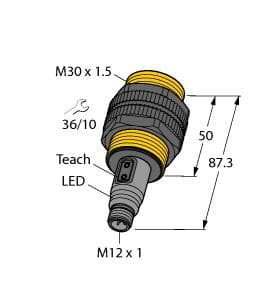

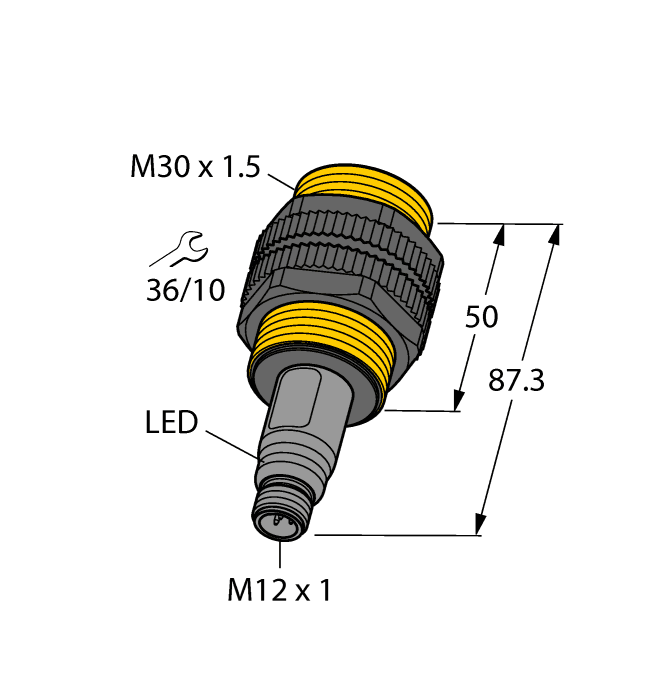

Turck BCT10-S30-UP6X2-H1151 is a capacitive proximity sensor belonging to the BC...-S30 series, designed for sensing tasks with a teach programmable feature via pin 5, making it embeddable. It operates on a supply voltage of 10-30Vdc, including nominal values of 12Vdc and 24Vdc, and is housed in a PA12-GF30 (glass fiber reinforced Polyamide) for both the housing and sensing face. This sensor is equipped with a 5-pin M12 Eurofast QD male connector for connectivity and is shaped as an M30 partially threaded barrel. It offers an IP67 degree of protection against ingress, with a maximum switching frequency of 100Hz. The BCT10-S30-UP6X2-H1151 supports IO-Link communication protocol and can operate within an ambient air temperature range of -25°C to +70°C. It features 1 x digital output (10-30Vdc; PNP; 200mA max.), with a no-load current consumption of 15mA and a sensing distance of 10mm. Protection functions include short-circuit (pulsed), overload, and reverse polarity, with a control circuit rated current of 200mA / 0.2 A. The thread size is M30, and the operating mode can be programmed as NO (Normally Open) or NC (Normally Closed).
