BC5-QF5.5-AN6X2/S250 Turck Capacitive Sensors
Part#:BC5-QF5.5-AN6X2/S250
Manufacturer:Turck
Alt. Part#:2620120
Product Lifecycle:Active
Get a quick Quote!
BC5-QF5.5-AN6X2/S250 Capacitive Sensor
About the manufacturer: Turck is one of the manufacturers that offers Capacitive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BC5-QF5.5-AN6X2/S250 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 32 g
- Approvals cULus
- Protection class IP67
- Design Rectangular
- Cable length (L) 2.0 m
- Rated switching distance 5 mm
- Output function NO contact, NPN
- Housing material Plastic, PP
- Electrical connection Cable
- Operating voltage 10…30 VDC

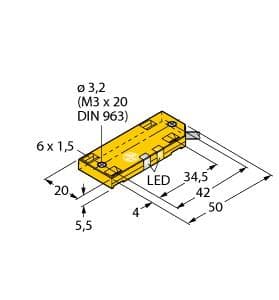

- Construction size 54 x 20.3 x 5.5 mm, QF5.5
- Ambient temperature -25…+70 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BC5-QF5.5-AN6X2/S250 Description

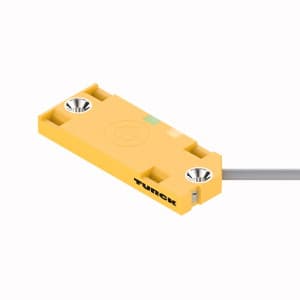

Turck BC5-QF5.5-AN6X2/S250 is a capacitive proximity sensor belonging to the BC...-QF5.5 series, featuring a Qpak housing with top-sensing capabilities designed for embeddable applications. It operates on a supply voltage of 10-30Vdc, including nominal values of 12Vdc and 24Vdc, and is constructed with a PP (Polypropylene) housing and sensing face, along with a PUR (Polyurethane) cable jacket. This sensor is connected via a pre-wired 2m / 6.5ft PUR cable that terminates with bare end flying leads. It has a rectangular body that is 5.5mm thick and offers an IP67 degree of protection. The maximum switching frequency is 100Hz, and it can operate within an ambient air temperature range of -25°C to +70°C. The sensor features one digital output (10-30Vdc; NPN; 200mA max.), with a no-load current consumption of 15mA and a sensing distance of 5mm. It includes protection functions against short-circuit (pulsed), overload, and reverse polarity, with a control circuit rated current of 200mA / 0.2 A. Its operating mode is NO (Normally Open).
Related documents BC5-QF5.5-AN6X2/S250 Specs
