BC5-QF5.5-AP6X2/S250 Turck Capacitive Sensors

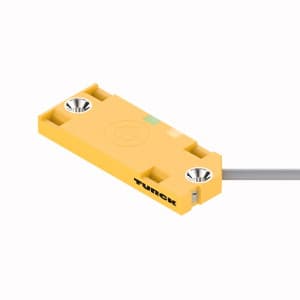

Turck BC5-QF5.5-AP6X2/S250 BC5-QF5.5-AP6X2/S250 Capacitive Sensor
Turck

Part#:BC5-QF5.5-AP6X2/S250

Manufacturer:Turck

Alt. Part#:2620116

Product Lifecycle:Active

Get a quick Quote!

BC5-QF5.5-AP6X2/S250 Capacitive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Capacitive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BC5-QF5.5-AP6X2/S250 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    34 g
  • Approvals
    cULus
  • Protection class
    IP67
  • Design
    Rectangular
  • Operating voltage
    10…30 VDC
  • Ambient temperature
    -25…+70 °C
  • Cable length (L)
    2.0  m
  • Housing material
    Plastic, PP
  • Electrical connection
    Cable
  • Output function
    NO contact, PNP
  • Rated switching distance
    5 mm
  • Construction size
    54 x 20.3 x 5.5 mm, QF5.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BC5-QF5.5-AP6X2/S250 Description

Turck BC5-QF5.5-AP6X2/S250 is a capacitive proximity sensor/switch that falls under the BC...-QF5.5 series. It features a Qpak housing with top-sensing capabilities and is designed to be embeddable. The sensor operates on a supply voltage range of 10-30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is constructed with a PP (Polypropylene) housing and sensing face, and a PUR (Polyurethane) cable jacket. This model is pre-wired with a 2m / 6.5ft PUR cable that terminates with bare end flying leads. The sensor has a 5.5mm thick rectangular body and offers an IP67 degree of protection. It supports a maximum switching frequency of 100Hz and can operate within an ambient air temperature range of -25°C to +70°C. The sensor includes 1 x digital output (10-30Vdc; PNP; 200mA max.) and has a no-load current consumption of 15mA. Its sensing distance is 5mm, and it features protection functions against short-circuit (pulsed), overload, and reverse polarity. The control circuit is rated at 200mA / 0.2 A, and the operating mode is NO (Normally Open).

Related documents BC5-QF5.5-AP6X2/S250 Specs

BC5-QF5.5-AP6X2/S250 English.pdf

Manufacturer warranty

$112.10

Request a quote, and we will send availability within minutes.

Select Qty:

$112.10

$112.10 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
