BC5-QF5.5-AN6X2-1.5-PSG3M/S250 Turck Capacitive Sensors

Name: BC5-QF5.5-AN6X2-1.5-PSG3M/S250
Brand: Turck
Price: 124.2 USD
Availability: BackOrder

Turck BC5-QF5.5-AN6X2-1.5-PSG3M/S250 BC5-QF5.5-AN6X2-1.5-PSG3M/S250 Capacitive Sensor

Part#:BC5-QF5.5-AN6X2-1.5-PSG3M/S250

Manufacturer:Turck

Alt. Part#:26201202

Product Lifecycle:Active

Get a quick Quote!

BC5-QF5.5-AN6X2-1.5-PSG3M/S250 Capacitive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Capacitive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BC5-QF5.5-AN6X2-1.5-PSG3M/S250 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
31 g
Ambient temperature
-25…+70 °C
Protection class
IP67
Operating voltage
10…30 VDC
Housing material
Plastic, PP
Rated switching distance
5 mm
Output function
NO contact, NPN
Cable length (L)
1.50 m
Electrical connection
Cable with connector, M8 × 1
Construction size
54 x 20.3 x 5.5 mm, QF5.5
Design
Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BC5-QF5.5-AN6X2-1.5-PSG3M/S250 Description

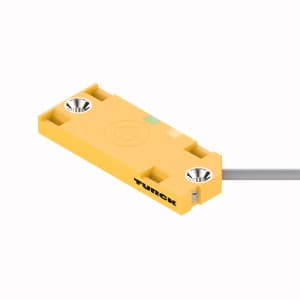

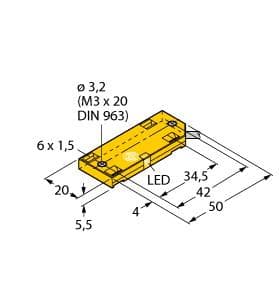

Turck BC5-QF5.5-AN6X2-1.5-PSG3M/S250 is a capacitive proximity sensor belonging to the BC...-QF5.5 series, designed with a Qpak housing for top-sensing and embeddable applications. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc, and features a polypropylene housing and sensing face. This sensor is equipped with a pre-wired 1.5m / 4ft pigtail cable that terminates with a 3-pin M8 Picofast threaded coupl. nut male connector. It has a 5.5mm thick rectangular body and offers an IP65 degree of protection. The maximum switching frequency is 100Hz, and it can operate in ambient air temperatures ranging from -25°C to +70°C. It includes 1 x digital output (10-30Vdc; NPN) with a sensing distance of 5mm. Protection functions include short-circuit (pulsed), overload, and reverse polarity, and it operates in a Normally Open (NO) mode.

$124.20

Request a quote, and we will send availability within minutes.

Select Qty:

$124.20

$124.20 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

BC5-QF5.5-AP6X2-0.4-PSG3/S250

$128.00

Verified stock: 2

Turck BC5-QF5.5-AP6X2-0.4-PSG3/S250 is a capacitive proximity sensor belonging to the BC...-QF5.5 series, designed with a Qpak housing for top-sensing and embeddable applications. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor is constructed with a PP (Polypropylene) housing and sensing face, ensuring compatibility with various environments. It features a pre-wired 40cm / 16" pigtail cable, terminating in a 3-pin M8 Picofast snap-lock male connector for easy installation. The sensor's rectangular body is 5.5mm thick, and it offers a degree of protection rated at IP65, making it suitable for use in conditions ranging from -25°C to +70°C. It is equipped with one digital output (10-30Vdc; PNP) and has a sensing distance of 5mm. For protection, it includes functions against short-circuit (pulsed), overload, and reverse polarity. The operating mode of the sensor is NO (Normally Open).

Turck

BI5-M18E-AN6X-H1141

$124.30

Verified stock: 64

Turck BI5-M18E-AN6X-H1141 is an inductive proximity sensor belonging to the BI...-M18 series. This sensor features an extended barrel embeddable design with a chrome-plated brass housing and is pre-equipped with a 4-pin M12 Eurofast QD male connector. It operates on a supply voltage of 10-30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor has a shape of an M18 partially threaded extended cylindrical/barrel and offers a degree of protection rated at IP67. It can operate at a maximum switching frequency of 1kHz / 1000Hz and has an ambient air temperature range for operation between -25°C and +70°C. The response time of the sensor is 8ms / 0.008 s, and it includes 1 x digital output (10-30Vdc; NPN; 200mA max.). The sensing distance is 5mm, and it features protection functions against short-circuit (pulsed), overload, and reverse polarity. The control circuit rated current is 200mA / 0.2 A, with a thread size of M18, and operates in a NO (Normally Open) mode.

Turck

BCA-4HM-E223

$113.10

Verified stock: 20

Turck BCA-4HM-E223 is a connector (receptacle) designed specifically for 3/4" form 8 or mark 9 conduits. It features a stainless steel receptacle and a housing made of fiberglass reinforced nylon. This part is equipped with 2 x 4-pin M12 connectors and supports the HART communication protocol. It also functions as a HART cover wall-plate adapter. The BCA-4HM-E223 offers a degree of protection rated at IP67, indicating its capability to withstand dust and water ingress.

Turck

BC5-S18-AP4X

$383.80

Verified stock: 2

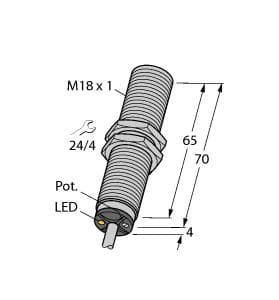

Capacitive Sensor, Rated switching distance 7.5 mm, Cable length (L) 2 m, Flush, M18 × 1 threaded barrel, Plastic, PA12‐GF30, Fine adjustment via potentiometer, DC 3-wire, 10…65 VDC, NO contact, PNP output, Cable connection
