XVBL4B4 Schneider Electric Industrial Automation Components

XVBL4B4 on Powermatic Associates
Schneider Electric

Part#:XVBL4B4

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

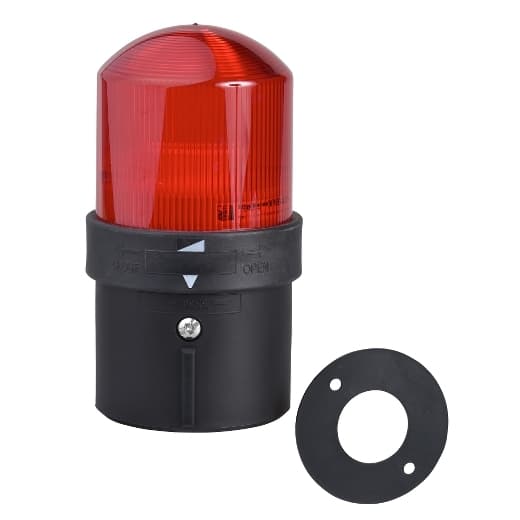

Schneider Electric XVBL4B4 is a modular tower light from the XVB sub-range, designed for illuminated beacon applications with an integral flashing light signaling feature in a single tier. This cylindrical-shaped unit offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0. It operates with a control voltage of 24 Vac and a dual-range control voltage for DC at 24-48 Vdc. The supply voltage requirements are 24 V for AC and 24-48 V for DC operations. This model emits light in red (R) color and has a diameter of 70 mm.

Product Details

  • Bulb Type
    Incandescent Incandescent BA 15d Protected LED
  • Terminals Description ISO N°1
    (GND)GROUND (COM-1)PW
  • Material
    Glass reinforced polyamide base unit Polycarbonate illuminated unit
  • [Us] Rated Supply Voltage
    24 V AC 24...48 V DC
  • Beacon Or Indicator Bank Unit Type
    Base unit direct or tube fixing Illuminated unit
  • CAD Overall Depth
    2.76 in (70 mm)
  • Net Weight
    0.62 lb(US) (0.28 kg)
  • CAD Overall Width
    2.76 in (70 mm)
  • CAD Overall Height
    5.47 in (139 mm)
  • Flashing Frequency
    1 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
  • Nominal Voltage Limit
    0.85...1.1 Un IEC 60947-5-1
  • Maximum Power Dissipation In W
    7 W
  • Connections - Terminals
    Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
  • Light Source
    Bulb not included, red
  • Signalling Type
    Flashing
  • Component Name
    XVBL
  • Range Of Product
    Harmony XVB Universal
  • Mounting Diameter
    2.76 in (70 mm)
  • Product Or Component Type
    Complete beacon

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XVBL4B4 on Powermatic Associates is $194.00. Order now.
