Powermatic Associates Logo

XVBL0G4 Schneider Electric Industrial Automation Components

XVBL0G4 on Powermatic Associates
Schneider Electric

Part#:XVBL0G4

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

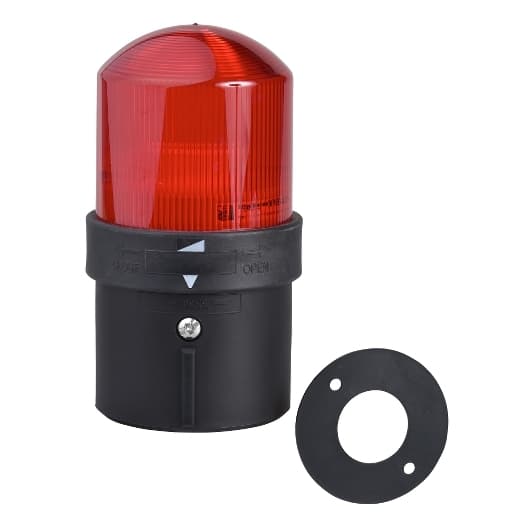

Schneider Electric XVBL0G4 is a modular tower light from the XVB sub-range, designed for illuminated beacon applications with steady light signaling in a single tier. This cylindrical-shaped automation part features a steady light function in red color. It offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ02. The control voltage and supply voltage for the XVBL0G4 are both specified at 120 Vac, and it has a diameter of 70 mm.

Product Details

  • Material
    Glass reinforced polyamide base unit Polycarbonate illuminated unit
  • Terminals Description ISO N°1
    (GND)GROUND (COM-1)PW
  • Beacon Or Indicator Bank Unit Type
    Base unit direct or tube fixing Illuminated unit
  • CAD Overall Depth
    2.76 in (70 mm)
  • Net Weight
    0.60 lb(US) (0.27 kg)
  • CAD Overall Height
    5.47 in (139 mm)
  • CAD Overall Width
    2.76 in (70 mm)
  • Nominal Voltage Limit
    0.85...1.1 Un IEC 60947-5-1
  • Current Consumption
    < 17 mA AC
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
  • [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
  • Connections - Terminals
    Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • [Us] Rated Supply Voltage
    120 V AC
  • Signalling Type
    Steady
  • Product Or Component Type
    Complete beacon
  • Bulb Type
    Protected LED
  • Component Name
    XVBL
  • Light Source
    Integral LED, red
  • Range Of Product
    Harmony XVB Universal
  • Mounting Diameter
    2.76 in (70 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XVBL0G4 on Powermatic Associates is $222.00. Order now.

XVBL0G4 Related Documents

Instruction Sheet-1631038947622.pdfCatalog-1631038947616.pdfProduct Datasheet-1631038947623.pdf
