XVBL6B4 Schneider Electric Industrial Automation Components

XVBL6B4 on Powermatic Associates
Schneider Electric

Part#:XVBL6B4

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

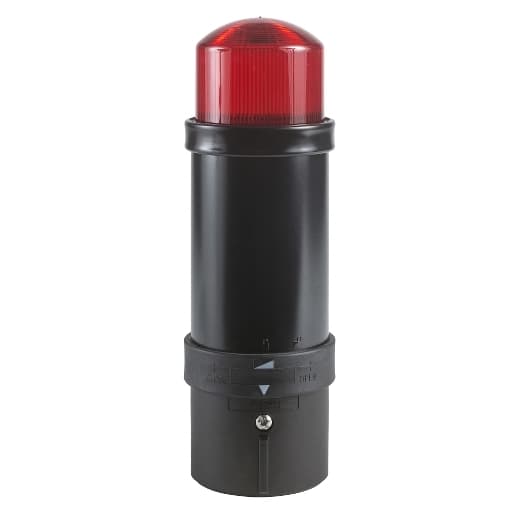

Schneider Electric XVBL6B4 is a modular tower light from the XVB sub-range, designed with a cylindrical shape and equipped with an illuminated beacon featuring a 5 Joule "flash" discharge tube for strobe light functionality. This 1-tier light offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0. It operates with a control voltage of 24 Vac and 24 Vdc, and a supply voltage of 24 V for both AC and DC. The light color emitted by this device is red, and it has a diameter of 70 mm.

Product Details

  • Current Consumption
    < 350 mA DC < 550 mA AC
  • Beacon Or Indicator Bank Unit Type
    Base unit direct or tube fixing Illuminated unit
  • Terminals Description ISO N°1
    (COM-1)PW (GND)GROUND
  • Material
    Glass reinforced polyamide base unit Polycarbonate illuminated unit
  • Net Weight
    0.97 lb(US) (0.44 kg)
  • CAD Overall Depth
    2.76 in (70 mm)
  • CAD Overall Height
    9.13 in (232 mm)
  • Connections - Terminals
    Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • Flash Energy
    5 J
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
  • CAD Overall Width
    2.76 in (70 mm)
  • Flashing Frequency
    1 Hz
  • [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
  • Nominal Voltage Limit
    0.85...1.1 Un IEC 60947-5-1
  • Light Source
    Integral flash discharge tube, red
  • [Us] Rated Supply Voltage
    24 V AC/DC
  • Bulb Type
    Flash discharge tube
  • Signalling Type
    Flashing
  • Component Name
    XVBL
  • Product Or Component Type
    Complete beacon
  • Mounting Diameter
    2.76 in (70 mm)
  • Range Of Product
    Harmony XVB Universal

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XVBL6B4 on Powermatic Associates is $285.00. Order now.
