SSL1D03JD Schneider Electric Industrial Automation Components

SSL1D03JD on Powermatic Associates
Schneider Electric

Part#:SSL1D03JD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

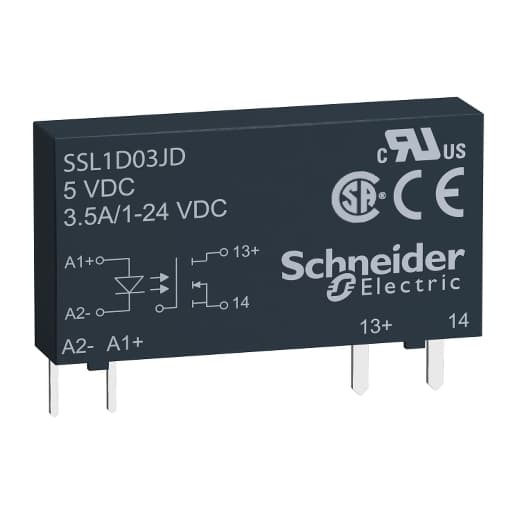

Schneider Electric SSL1D03JD is a solid state relay (SSR) within the SSL sub-range, designed for interfacing sliim solid state/static relay applications. It operates with a control voltage (DC) range of 3-12 Vdc and can handle a rated current of 3.5 A. The relay is suitable for circuits with rated voltages (DC) between 1 and 24 V. Its plug-in mounting mode facilitates easy installation and integration into various electrical systems.

Product Details

  • Response Time
    0.12 ms (turn-on) 0.1 ms (turn-off)
  • Solid State Output Type
    Mosfet output DC switching
  • Depth
    0.59 in (15 mm)
  • Net Weight
    0.01 lb(US) (0.0041 kg)
  • Overvoltage Category
    III
  • Maximum Leakage Current
    0.001 mA off-state
  • Load Current
    0.001…3.5 A
  • Height
    1.10 in (28 mm)
  • Width
    0.20 in (5 mm)
  • Maximum Voltage Drop
    <0.5 V on-state
  • Surge Current
    9 A 10 ms
  • Maximum Operating Frequency
    500 Hz
  • Tansient Overvoltage
    30 V DC
  • Input Impedance
    500 Ohm
  • Input Current Limits
    10 mA
  • Maximum Switching Voltage
    1 V DC turn-off
  • Minimum Switching Voltage
    3 V DC turn-on
  • Capacitance Unbalance
    1.5 pF input/output
  • Device Short Name
    SSL
  • Line Rated Current
    3.5 A
  • Output Switching Mode
    DC switching
  • Output Voltage
    1...24 V DC
  • [Uc] Control Circuit Voltage
    3...12 V DC
  • Mounting Support
    Socket
  • Phase
    1 phase
  • Product Or Component Type
    Solid state relay up to 10 A
  • Range Of Product
    Harmony Solid State Relays

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSL1D03JD on Powermatic Associates is $19.50. Order now.
