RKF36300CU44A Schneider Electric Electronic Components

RKF36300CU44A on Powermatic Associates
Schneider Electric

Part#:RKF36300CU44A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

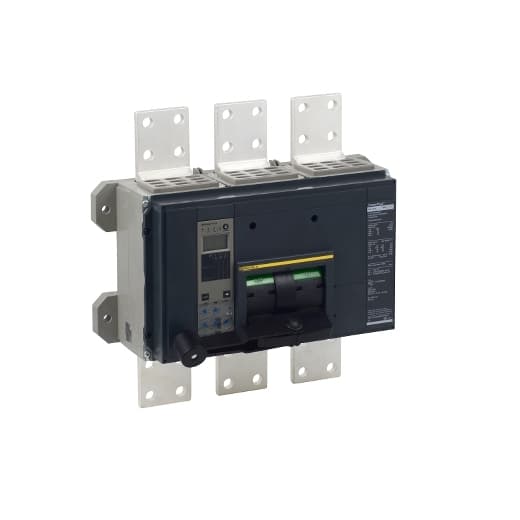

Square D by Schneider Electric RKF36300CU44A is a Molded Case Circuit Breaker (MCCB) designed for mounting plate installation. It operates at a rated voltage of 600 V AC and offers a rated current of 3000A. This MCCB features a 3 Pole configuration and provides protection functions including Long-time (L), Short-time with fixed time delay (S), Instantaneous (I), and Ground fault (G). It belongs to the PowerPact RKF sub-range and connects via Busbar. The short circuit breaking rating is specified at 65kA across various voltages including 240Vac, 480Y/277Vac, 480Vac, 600Y/347Vac, and 600Vac. The trip current rating and frame current rating are both 3000 AT and 3000 AF, respectively. It is equipped with a Micrologic 6.0A (LSIG) Electronic trip unit and protects all 3 poles.

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Continuous Current Rating
    100 %
  • Width
    16.53 in (419.86 mm)
  • Depth
    14.49 in (368.05 mm)
  • Number Of Poles
    3P
  • Height
    16.24 in (412.50 mm)
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RKF36300CU44A Related Documents

Instruction Sheet-1631029957753.pdfProduct Datasheet-1631029957701.pdfCatalog-1631029957719.pdf
