HLL36100CU31X Schneider Electric Electronic Components

HLL36100CU31X on Powermatic Associates
Schneider Electric

Part#:HLL36100CU31X

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

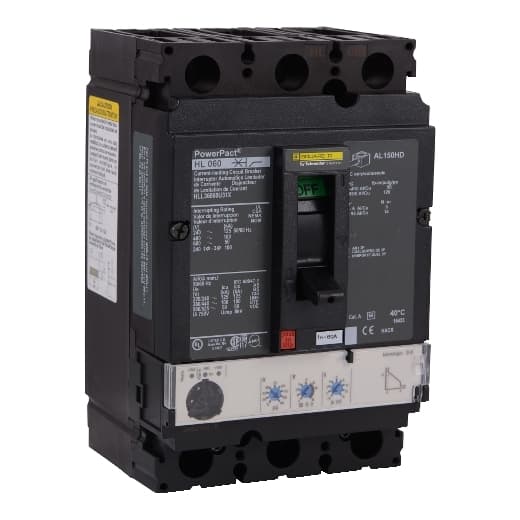

PowerPact H Circuit Breaker,Micrologic3.2,100A,3P,600V,50kA

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    100 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Line Rated Current
    100 A
  • Height
    6.4 in (162.56 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P
  • Breaking Capacity Code
    L
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLL36100CU31X on Powermatic Associates is $3,860.00. Order now.

HLL36100CU31X Related Documents

Product Datasheet-1631040542560.pdf

Similar products from: Schneider Electric Electronic Components

LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.
