HLA36100YP Schneider Electric Electronic Components

HLA36100YP on Powermatic Associates
Schneider Electric

Part#:HLA36100YP

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

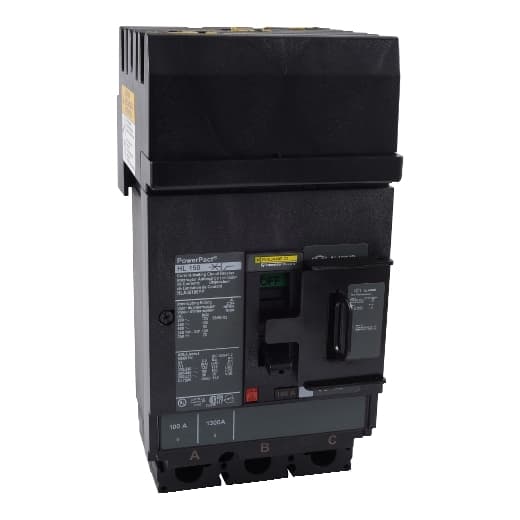

PowerPact H I-Line Circuit Breaker,ThermMagn,100A,3P,600V,50kA,Handle Padlock

Product Details

  • Electrical Connection
    I-Line connection line Lugs load
  • Phase Connection
    ABC
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Continuous Current Rating
    80 %
  • Height
    9.73 in (247.14 mm)
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.48 in (113.79 mm)
  • Magnetic Tripping Current
    1700 A
  • Magnetic Hold Current
    900 A
  • Line Rated Current
    100 A
  • Breaking Capacity Code
    L
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H
  • Number Of Poles
    3P
  • Mounting Mode
    I-Line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLA36100YP on Powermatic Associates is $4,980.00. Order now.

HLA36100YP Related Documents

Product Datasheet-1631040838900.pdf

Similar products from: Schneider Electric Electronic Components

HDF36035 on Powermatic Associates

HDF36035

Schneider Electric
