Part#:BMI0703P02F

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 4 left in stock. Order Now!

Apr 11, 2025

Product description

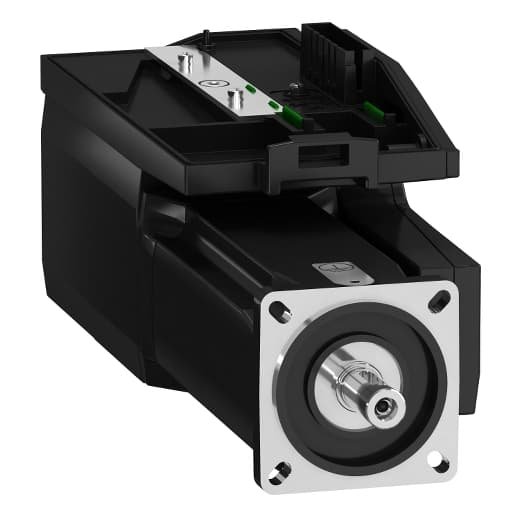

Schneider Electric BMI0703P02F is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, a holding brake, and triple (3) motor stacks. The servo motor operates on a supply voltage of 208Vac-480Vac, including specific ratings at 220Vac, 240Vac, and 400Vac. It offers a degree of protection rated at IP54 and IP65, with a rated current of 2.1A at 1600rpm and 208Vac, 1.87A at 3300rpm and 400Vac, and 1.71A at 3800rpm and 480Vac. The mounting mode is a 70x70mm flange, and it uses the HIPERFACE communication protocol. The net width of the motor is 70 mm. Its rotational speed varies with supply voltage, achieving 1600rpm at 208Vac, 3300rpm at 400Vac, and 3800rpm at 480Vac. The rated active power is 0.49kW / 490W at 1600rpm and 208Vac, 0.89kW / 890W at 3300rpm and 400Vac, and 0.94kW / 940W at 3800rpm and 480Vac. The maximum torque is 8.06Nm, with a stall torque of 2.96Nm, and operational torques of 2.93Nm at 1600rpm and 208Vac, 2.58Nm at 3300rpm and 400Vac, and 2.35Nm at 3800rpm and 480Vac. The moment of inertia is 1.78kg.cm.

Product Details

  • Maximum Radial Force Fr
    730 N 1000 rpm 580 N 2000 rpm 510 N 3000 rpm 460 N 4000 rpm 430 N 5000 rpm 400 N 6000 rpm
  • Maximum Current Irms
    12.5 A 400 V, three phase 12.5 A 480 V, three phase 12.5 A 208 V, three phase
  • Nominal Output Power
    900 W 400 V three phase 900 W 480 V three phase 450 W 208 V three phase
  • Nominal Speed
    3300 rpm 400 V three phase 1600 rpm 208 V three phase 3900 rpm 480 V three phase
  • Peak Stall Torque
    76.12 lbf.in (8.6 N.m) 208 V three phase 76.12 lbf.in (8.6 N.m) 400 V three phase 76.12 lbf.in (8.6 N.m) 480 V three phase
  • Nominal Torque
    25.67 lbf.in (2.9 N.m) 208 V three phase 23.90 lbf.in (2.7 N.m) 400 V three phase 20.36 lbf.in (2.3 N.m) 480 V three phase
  • Product Compatibility
    Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT
  • Circle Diameter Of The Mounting Holes
    2.95…3.23 in (75…82 mm)
  • Distance Shaft Shoulder-Flange
    0.10 in (2.5 mm)
  • Mounting Holes Diameter
    0.22 in (5.5 mm)
  • Stator Electrical Time Constant
    3.2 ms 68 °F (20 °C)
  • Length
    13.35 in (339 mm)
  • Type Of Cooling
    Natural convection
  • Maximum Axial Force Fa
    0.2 x Fr
  • Brake Pull-In Power
    5 W
  • Holding Torque
    26.55 lbf.in (3 N.m) holding brake
  • Stator Inductance
    25.6 mH 68 °F (20 °C)
  • Torque Constant
    1.41 N.m/A 68 °F (20 °C)
  • Back Emf Constant
    95.39 V/krpm 68 °F (20 °C)
  • Electrical Connection
    Printed circuit board connector
  • Holding Brake
    With
  • Speed Feedback Resolution
    131072 points/turn x 4096 turns
  • Second Shaft
    Without second shaft end
  • Number Of Mounting Holes
    4
  • Centring Collar Diameter
    2.36 in (60 mm)
  • Centring Collar Depth
    0.10 in (2.5 mm)
  • Number Of Motor Stacks
    3
  • Stator Resistance
    7.99 Ohm 68 °F (20 °C)
  • Rotor Inertia
    1.78 kg.cm²
  • Number Of Motor Poles
    10
  • Mounting Support
    International standard flange
  • Motor Flange Size
    2.76 in (70 mm)
  • Shaft Length
    1.18 in (30 mm)
  • Feedback Type
    Absolute multiturn SinCos Hiperface
  • Shaft Diameter
    0.55 in (14 mm)
  • Shaft End
    Untapped
  • Continuous Stall Torque
    30.09 lbf.in (3.4 N.m) 208...480 V three phase
  • Continuous Output Current
    2 A 8 kHz
  • Output Current 3S Peak
    6 A 400 V 3 s
  • Continuous Stall Current
    2 A
  • EMC Filter
    Integrated
  • Maximum Mechanical Speed
    8000 rpm
  • Supply Frequency
    50/60 Hz - 5...5 %
  • Network Frequency Limits
    47.5…63 Hz
  • Phase
    Three phase
  • Supply Voltage Limits
    208…480 V
  • [Us] Rated Supply Voltage
    208...480 V - 15...10 %
  • Device Short Name
    BMI
  • Product Or Component Type
    Servo motor with power stage
  • Range Compatibility
    Lexium 32i

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BMI0703P02F on Powermatic Associates is $3,007.80. Order now.
