BDL36100

Schneider Electric

Product Lifecycle: Active

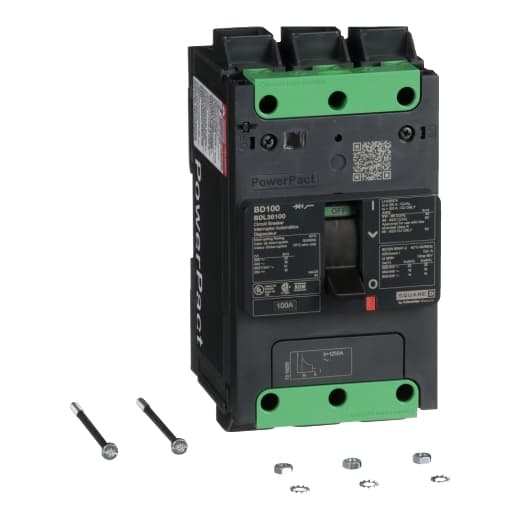

Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

BDL36100

Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Product Datasheet.pdf

Instruction Sheet.pdf

Product details

Product Datasheet.pdf

Instruction Sheet.pdf

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480/277 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600Y/347 V AC 50/60 Hz UL 489 10 kA 250 V DC UL 489
[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
Number Of Slots1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
Tightening Torque44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
AWG GaugeAWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Mounting ModeClip-on 35 x 15 mm symmetrical DIN rail) By screws plate)

Electrical ConnectionEverlink lug line Everlink lug load

Net Weight2.37 lb(US) (1.074 kg)

Depth3.15 in (80 mm)

Width3.19 in (81 mm)

Height5.39 in (137 mm)

ColorGrey (RAL 7016)

Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2

Suitability For IsolationYes IEC 60947-2

Quantity Per SetSet of 1

Power Wire Stripping Length0.79 in (20 mm)

9 Mm Pitches9

Connection Pitch1.06 in (27 mm)

Local Signallingfor presence of auxiliary contacts flag (green)

Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Utilisation CategoryCategory A

Trip Unit TechnologyThermal-magnetic

Continuous Current Rating80 %

[Ui] Rated Insulation Voltage800 V IEC 60947-2

[Ue] Rated Operational Voltage525 V AC 50/60 Hz UL 489

[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2

Device Short NameBD 100

Line Rated Current100 A

Control TypeToggle

Product NamePowerPact B

Device ApplicationDistribution

Breaking Capacity CodeD

Number Of Poles3P

Product Or Component TypeCircuit breaker

RangePowerPact
