NT24K-11FX3-SC-POE-PT Red Lion Industrial Automation Components

NT24K-11FX3-SC-POE-PT on Powermatic Associates
Red Lion

Part#:NT24K-11FX3-SC-POE-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

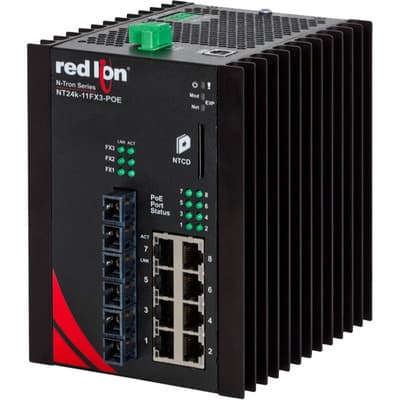

Red Lion NT24k-11FX3-SC-POE-PT is a Gigabit (GbE/GigE) industrial managed Ethernet switch that features SNMP v1, v2, v3, and Web Browser Management, SSH/SSL/HTTPS, 802.1x with RADIUS Remote Server Authentication, Multi-Member N-Ring Technology with 30ms Healing, N-Link Redundant Ring Technology, N-View Monitoring Technology, EtherNet/IP CIP Messaging, Web configuration, IGMP Auto Configuration, 802.1Q tag VLAN and Port VLAN, 802.1p QoS and Port QoS, SNTP, Event Log/Syslog, Port Trunking, Port Mirroring, 802.1d, 802.1w, 802.1D RSTP, DHCP Client, and Local Port IP Addressing. It is designed for DIN rail mounting and operates within an ambient air temperature range of -40 to +80°C. This model, part of the N-Tron NT24k PoE series, comes in a PTP version with a metallic case. It supports a supply voltage of 22-49Vdc (24Vdc / 48Vdc) and uses Ethernet as its communication protocol. The connection capacity includes 8 x RJ45 ports (10/100/1000BaseTX; IEEE 802.3af/at (PoE+)) and 3 x SC fiber optic connectors (multi-mode; 100BaseFX; 2km rated optical fiber), totaling 11 ports.

Product Details

  • Main function
    Ethernet Switch
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron NT24k PoE series
  • Supply voltage (DC)
    22-49Vdc (24Vdc / 48Vdc)
  • Ambient air temperature for operation
    -40...+80 °C
  • Communication protocol
    Ethernet
  • Equivalent to
    NT24k11FX3SCPOEPT
  • Secondary brand
    N-Tron
  • Design
    PTP version
  • Connection type
    8 x RJ45 ports (10/100/1000BaseTX; IEEE 802.3af/at (PoE+)) 3 x SC fiber optic connectors (multi-mode; 100BaseFX; 2km rated optical fiber)
  • Product series / family name
    Ethernet switches
  • Connection capacity
    11-ports
  • Mounting mode
    DIN rail
  • Order code / Manufacturer SKU
    NT24K-11FX3-SC-POE-PT
  • Functions
    Gigabit (GbE/GigE) industrial managed Ethernet switch SNMP v1; v2; v3 and Web Browser Management SSH/SSL/HTTPS 802.1x with RADIUS Remote Server Authentication Multi-Member N-Ring Technology with 30ms Healing N-Link Redundant Ring Technology N-View Monitor
  • Material
    Metallic case
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include
  • Compliant with standard(s)
    CE IEEE 1588v2 EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
