MDMU0010 Red Lion Industrial Automation Components

MDMU0010 on Powermatic Associates
Red Lion

Part#:MDMU0010

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

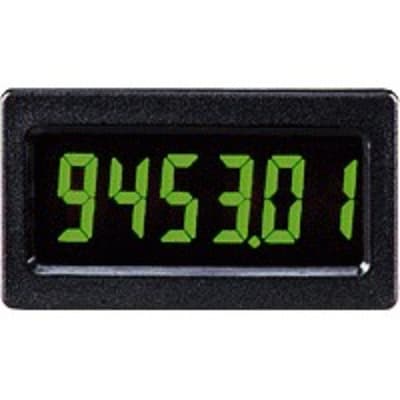

Red Lion MDMU0010 is a digital counter and timer designed for flush or door mounting, belonging to the Specialty Panel Meters Series. It features a compact design with dimensions of W46mm x H27mm (1.8" x 1") and offers a degree of protection rated at IP65 NEMA 4X, suitable for various industrial environments. This unit operates on a 5Vdc supply voltage and includes 1 x digital input that supports high-speed counters with a maximum frequency of 10kHz, accommodating both sink and source wiring configurations.

Product Details

  • Primary brand
    Red Lion
  • Main function
    Counter (Digital)
  • Sub-range name
    Specialty panel meters series
  • Mounting mode
    Flush / door
  • Order code / Manufacturer SKU
    MDMU0010
  • Supply voltage (DC)
    5Vdc
  • Degree of protection
    IP65 NEMA 4X
  • Product series / family name
    Process indicators
  • Display
    1 row x 8-digits green / yellow characters (9mm / 0.35" high) negative image backlight LCD display
  • Functions
    Counter/Timer
  • Compliant with standard(s)
    CE
  • Design
    W46xH27mm (1.8"x1")
  • Benefits
    LCD positive reflective or negative transmissive with yellow/green or red backlighting Counter and timer all in a single unit Count positive or negative edge 9 ranges in timer mode Selectable decimal points 5Vdc powered Panel mount or PC board mount
  • Digital inputs
    1 x digital input (high-speed counters; 10kHz max.; Sink/Source)
  • Dimensions
    W46mm x H27mm (1.8" x 1")

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MDMU0010 Related Documents

Red Lion - MDMV - Product Manual.pdf
