QT20.241
Puls
Product Lifecycle: Active
PULS QT20.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The rated current is 20A at 24Vdc and 17.5A at 28Vdc, with a power derating from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage accommodates a wide range with 3-phase input from 323Vac to 576Vac, including nominal voltages of 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac at 47-63Hz, with a turn-ON voltage of 3 x 263Vac and a shutdown voltage of 3 x 242Vac. Its dimensions are W65mm x H124mm x D127mm, housed in aluminium for durability. The QT20.241 supports a 3-phase network, has a net width of 65mm, and provides a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with a maximum output overvoltage protection set between 32Vdc (typical) and 35Vdc (maximum). It includes protection against overvoltage, overload, and short-circuit conditions, and allows for series or parallel operation to increase output power. The unit is designed to handle back-feeding loads up to 34V without malfunctioning. Efficiency rates are 0.948 with a 3x480Vac input and 0.95 with a 3x400Vac input. Peak inrush current consumption is capped at 10A, with a start-up delay between 290-350ms and a hold time of 22ms. Power dissipation losses are 26.4W and 25.3W for 3x480Vac and 3x400Vac inputs, respectively, under full load conditions. Electrical durability spans up to 345000 hours at 25°C with a 10A output and 3AC 400Vac input, with varying durability under different conditions. The ripple is maintained at 100mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 950µF.

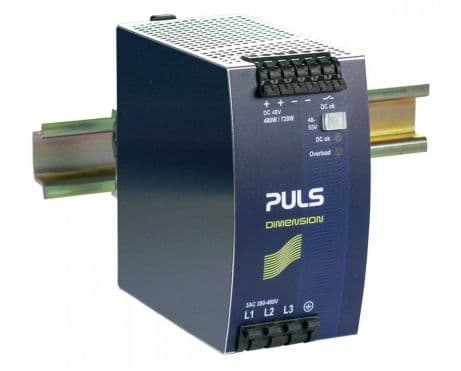

![QT20.241](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FQT20.241.jpg&w=3840&q=75)
PULS QT20.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The rated current is 20A at 24Vdc and 17.5A at 28Vdc, with a power derating from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage accommodates a wide range with 3-phase input from 323Vac to 576Vac, including nominal voltages of 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac at 47-63Hz, with a turn-ON voltage of 3 x 263Vac and a shutdown voltage of 3 x 242Vac. Its dimensions are W65mm x H124mm x D127mm, housed in aluminium for durability. The QT20.241 supports a 3-phase network, has a net width of 65mm, and provides a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with a maximum output overvoltage protection set between 32Vdc (typical) and 35Vdc (maximum). It includes protection against overvoltage, overload, and short-circuit conditions, and allows for series or parallel operation to increase output power. The unit is designed to handle back-feeding loads up to 34V without malfunctioning. Efficiency rates are 0.948 with a 3x480Vac input and 0.95 with a 3x400Vac input. Peak inrush current consumption is capped at 10A, with a start-up delay between 290-350ms and a hold time of 22ms. Power dissipation losses are 26.4W and 25.3W for 3x480Vac and 3x400Vac inputs, respectively, under full load conditions. Electrical durability spans up to 345000 hours at 25°C with a 10A output and 3AC 400Vac input, with varying durability under different conditions. The ripple is maintained at 100mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 950µF.
Product details
- Depth127 mm
- Efficiency95 %
- Power480 W
- Current Output20 A
- UL File No.E198865
- Phase3 Phase
- Height124 mm
- Width65 mm
- Current Input0.79 A
