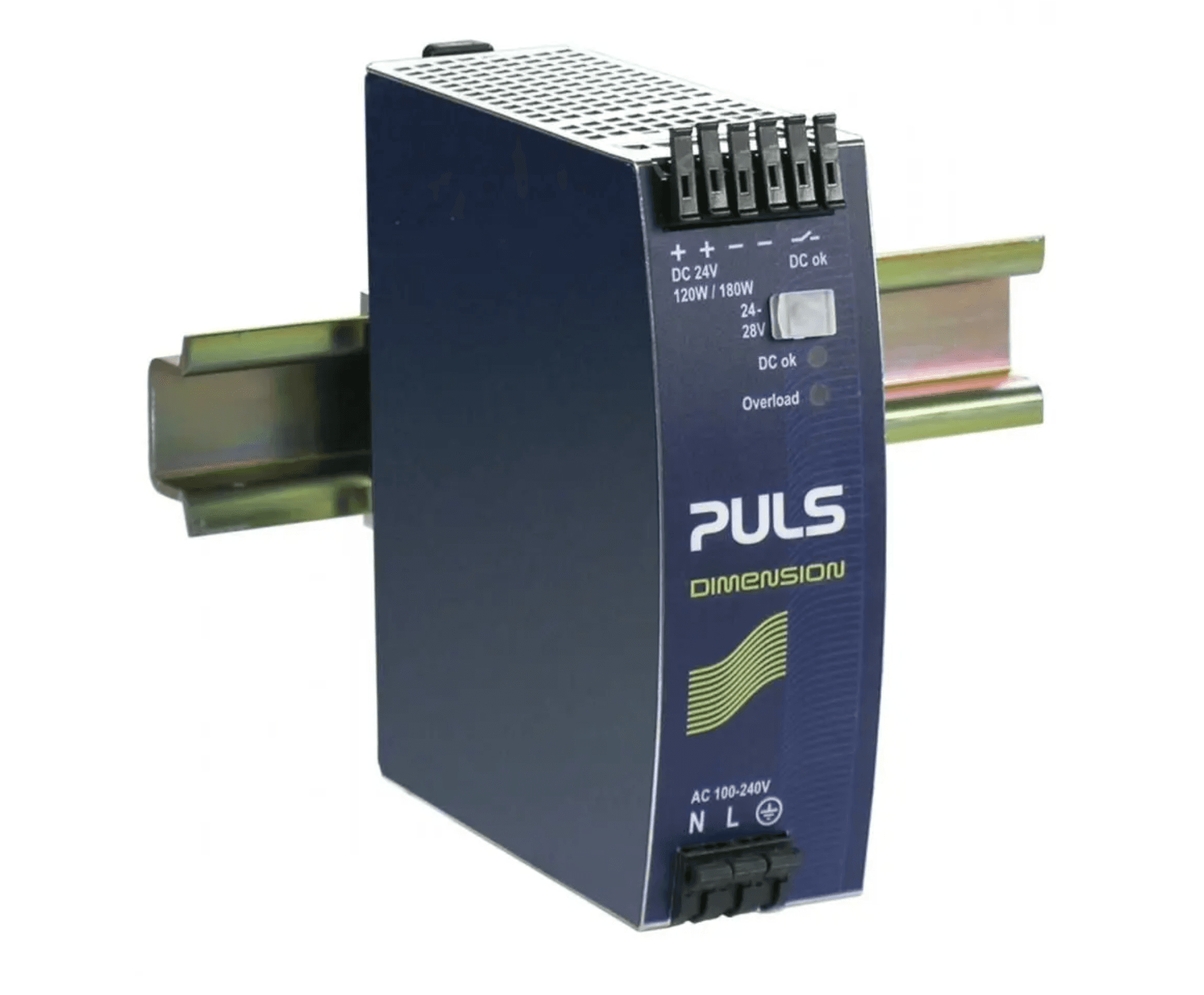

QS5.241-A1 Puls AC/DC Power Supplies

Name: QS5.241-A1
Brand: Puls

Part#:QS5.241-A1

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

PULS QS5.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and boasts ATEX approval, conformal coating, and a DC-OK relay contact output for enhanced functionality. The unit provides a rated current of 5A at 24Vdc and 4.5A at 28Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac for AC inputs and 88Vdc to 360Vdc for DC inputs, ensuring versatility across different power networks. The QS5.241-A1, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in a durable aluminium casing. It delivers a rated power of 120W at 24V and 126W at 28V, with a short-term capacity of 180W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, and the unit includes comprehensive protection functions against overvoltage, overload, and short circuits. It is designed for single-phase or DC networks and demonstrates high efficiency rates up to 0.927, depending on the input voltage. The QS5.241-A1 also features a peak inrush current of 15A, a start-up delay between 85 to 120ms, and a hold time of up to 65ms, depending on the input voltage. Power dissipation is minimized to 9.4W at full output load with a 230Vac input. Its electrical durability is rated up to 252,000 hours at optimal conditions, with a ripple of 50mVpp and an output stage capacitance of 3500µF, ensuring stable and reliable operation over its lifespan.

Product Details

UL File No.
E198865
Phase
1 Phase
Height
124 mm
Width
40 mm
Depth
117 mm
Current Output
5 A
Current Input
1.1 A
Power
120 W
Efficiency
92.7 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS5.241-A1 Related Documents

Datasheet.pdf

Similar products from: Puls AC/DC Power Supplies

ML15.051

Puls

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

1 in stock

CPS20.121

Puls

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

1 in stock

CP10.241-S2

Puls

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

4 in stock

QS10.121

Puls

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.

1 in stock

QS3.241

Puls

PULS QS3.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 3.4A at 24Vdc and 3A at 28Vdc, with spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-375Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The QS3.241, part of the Q-series, measures 32mm in width, 124mm in height, and 102mm in depth, housed in an aluminium casing. It delivers a rated power of 80W at 24V, 84W at 28V, and can handle up to 120W short-term for 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions against overvoltage, overload, and short-circuit conditions. Efficiency rates vary by input voltage, achieving up to 0.9 at 230Vac. The unit exhibits a start-up delay of 330-360ms, with a hold time of 174ms at 230Vac input. Power dissipation is noted at 9.1W for 230Vac input under full load. Electrical durability spans up to 224000 hours, depending on conditions, and the output stage capacitance is 1500µF, with a ripple of 50mVpp across a 20Hz to 20MHz range.

4 in stock

SL10.100

Puls

PULS SL10.100 is a power supply unit featuring an EMC filter and DC-OK relay contact output. It operates as an AC/DC PSU/converter with capabilities for parallel operation and a power boost up to 288W. The unit is equipped with screw-clamp connections and has dimensions of W120mm x H124mm x D102mm. It supports a supply voltage range of 85Vac-132Vac / 176Vac-264Vac across various nominal voltages from 100Vac to 240Vac at a frequency of 47-63Hz. The SL10.100 provides a rated current of 10A at 24Vdc with a derating at 6W/+60°C to +70°C. Designed for DIN rail mounting, it can operate within an ambient air temperature range of 0 to +70 °C. The current consumption is 6A with a 115V input and 2.6A with a 230V input, with a maximum inrush of 30A at 264Vac input. This single-phase unit includes protection functions against output overvoltage (35V), short-circuit, overload/short-circuit current, and allows for series/parallel operation with power back immunity (34V). The output voltage is adjustable between 24Vdc and 28Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 288W at temperatures up to +45°C and 240W up to +60°C. It features a hold time of 25ms at 196Vac input, power dissipation/losses of 26.7W at full output load with 230Vac input, a start-up delay of 100ms, a rise time of 5-20ms under nominal input at constant full current load, and a ripple of 30mVpp at 20Hz to 20MHz with a 50Ω load.

1 in stock

Manufacturer warranty

QS5.241-A1 Puls

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QS5.241-A1 with other AC/DC Power Supplies products

UL File No.

Phase

Height

Width

Depth

Current Output

Current Input

Power

Efficiency

Selected product

Backordered

QS5.241-A1

Puls

PULS QS5.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion wi...

UL File No.E198865

Phase1 Phase

Height124 mm

Width40 mm

Depth117 mm

Current Output5 A

Current Input1.1 A

Power120 W

Efficiency92.7 %

4 in stock

CP10.241-S2

Puls

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates wit...

UL File No.E198865

Phase1 Phase

Height124 mm

Width39 mm

Depth117 mm

Current Output10 A

Current Input2.15 A

Power240 W

Efficiency95.2 %

1 in stock

ML15.051

Puls

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates w...

UL File No.E198865

Phase1 Phase

Height75 mm

Width23 mm

Depth91 mm

Current Output3 A

Current Input0.28 A

Power15 W

Efficiency77.2 %

About the manufacturer

Powermatic Associates is an authorized Puls distributor, proudly offering their innovative and reliable industrial power supply solutions. Puls is a renowned manufacturer specializing in high-quality DIN rail power supplies, engineered to deliver optimal performance and efficiency across various demanding applications. Their product portfolio includes single-phase and three-phase power supplies, D...

About the Product Category

AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

Relevant products

SL5.100

Verified stock: 1

PULS SL5.100 is a power supply unit designed with an EMC filter and DC-OK relay contact output. This AC/DC power supply unit (PSU) / converter is capable of a power boost up to 6A and features screw-clamp connections for secure installation. It has dimensions of W64mm x H124mm x D102mm and supports a wide range of supply voltages including AC: 85Vac-132Vac / 176Vac-264Vac and DC: 300Vdc, with a rated current of 5A at 24Vdc. The SL5.100 is designed for DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +70°C. It has a net width of 64 mm and consumes 2.6A (with a 115V input) or 1.4A (with a 230V input), with a maximum inrush of 15A at 264Vac input. This unit is suitable for single-phase (1AC) or DC networks and includes protection functions against output overvoltage, short-circuit, and overload without switching off. The output voltage is fixed at 24Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 120W, with a hold time of 37ms at 196Vac input, and power dissipation/losses of 13.3W at full output load with a 230Vac input. It also features a 100ms start-up delay and a 5-20ms rise time under nominal input with a constant full current load, and a ripple of 50mVpp at 20Hz to 20MHz.

Puls

CD5.241

Verified stock: 1

PULS CD5.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.903 at 24Vdc with a 5A input. The CD5.241 includes a 650ms start-up delay and an 800ms rise time under nominal input with a constant full current load and 0mF load capacitance. It offers protection functions such as output overvoltage protection, short-circuit protection with a minimum of 7A and a maximum of 10A continuous current, and allows for series or parallel operation for increased output power or 1+1 redundancy. The unit is capable of handling back-feeding loads up to 30V without malfunctioning, whether powered on or off, and includes reverse polarity protection. Power dissipation/losses are 12.9W under a 24Vdc input with a 24V output load at 5A, and 6.2W at 2.5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 37,000 to 185,000 hours depending on the operating conditions. It features a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This PSU/DC/DC-Converter offers a 20% power reserve, is part of the CD-series, and includes ATEX approval for galvanic isolation. Connection is facilitated via screw-clamp connections, with a supply voltage range of 18Vdc-32.4Vdc (24Vdc nominal) and 14.4-18Vdc for up to 60s. The rated current is 6A at 24Vdc from -25 to +45°C and 5A at +45 to +60°C, with a derating to 3W from +60 to +70°C. The rated power is 144W at ambient temperatures below 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.

Puls

UF20.481

Verified stock: 3

PULS UF20.481 is an Uninterruptible Power Supply (UPS) control module, part of the UF-series, designed as a bfr. module with capacitive storage and features a green status LED. It is housed in aluminium and utilizes spring-clamp connections for connectivity. This module measures W64mm x H124mm x D102mm and operates on a supply voltage range of 38.4Vdc to 60Vdc, with a nominal voltage of 48Vdc. It is rated for a current of 20A (bfr.) and is designed for DIN rail mounting. The UF20.481 can operate in ambient air temperatures ranging from -25 to +70°C and is suitable for DC networks. It includes a visual position indicator for Ready, Buffering, and Inhibit statuses. The module offers protection functions including output overvoltage protection, with typical protection at 58Vdc and a maximum of 60Vdc. Buffer modules can be connected in parallel to increase output ampacity or hold-up time. It provides a fixed output voltage of 48Vdc, boasts an efficiency of 0.99 at 48Vdc input, and offers a hold time of 15ms / 0.15s at a 20A load. Power dissipation/losses are 1.9 W at 24Vdc input with 0A output current. Ripple is specified as 250mVpp at 5A, 400mVpp at 10A, and 600mVpp at 20A, across a frequency range of 20Hz to 20MHz at 50Ω. Its electrical durability is rated at 161,000 hours at 40°C and 457,000 hours at 25°C in standby mode.

Puls

ML30.100

Verified stock: 2

PULS ML30.100 is a power supply unit designed for AC/DC conversion with a primary function to supply power. It supports DIN rail mounting for easy installation and operates within an ambient air temperature range of -10 to +70°C. This unit is designed according to NEC Class 2 standards, offering a rated current of 1.3A at 24Vdc, and utilizes spring-clamp connections for secure attachment. It accepts a wide range of supply voltages from 85Vac to 264Vac (covering standard voltages like 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz, with a turn-ON voltage of 46Vac and a shutdown voltage of 44Vac) and also operates on DC supply voltages from 88Vdc to 375Vdc. The ML30.100 is housed in a PC/ABS blend, ensuring durability, and measures 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 30W, and provides an adjustable output voltage range of 24Vdc to 28Vdc with a 250mV turn-ON overshoot. The unit features protection functions including an NTC for input inrush current limiting, achieves an efficiency of 0.875 at 230Vac input, and has a maximum inrush current consumption of 17A at 120Vac input and 35A peak at 230Vac input. Power dissipation/losses are rated at 4.3W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

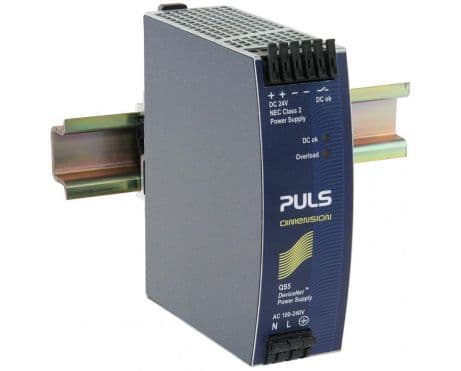

QS5.DNET

Verified stock: 0

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and is a NEC Class 2 DeviceNet approved unit featuring a DC-OK relay contact output. The unit provides a rated current of 3.8A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS5.DNET, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 91.2W and a fixed output voltage of 24Vdc. Protection features include output overvoltage protection and mechanisms for handling overload, short-circuit conditions, and back-feeding loads. The unit boasts high efficiency rates varying with input voltage, specific current consumption peaks, and detailed time delays for start-up and rise times, alongside hold times for buffer periods. Power dissipation losses are provided for different input conditions, and the electrical durability is specified under various operational conditions. The output stage capacitance is 3500µF, and the ripple is maintained at 50mVpp across a wide frequency range.

Puls

QS5.241

Verified stock: 0

PULS QS5.241 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a DC-OK relay contact output for enhanced monitoring. The unit provides a rated current of 5A at 24Vdc and 4.5A at 28Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, ensuring flexibility across different power networks. The QS5.241, part of the Q-series, is housed in an aluminium casing, measuring 40mm in width, 124mm in height, and 117mm in depth. It delivers a rated power of 120W at 24V and 126W at 28V, with a short-term capacity of 180W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions including output overvoltage protection and overload/short-circuit protection. It allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. The unit boasts high efficiency rates up to 0.927 depending on the input voltage and has a peak current consumption of 15A. It features a start-up delay of 85-120ms, with a rise time of 18ms to 38ms depending on load capacitance, and a hold time of 34ms to 65ms. Power dissipation is minimized, and the unit demonstrates exceptional electrical durability, with operational lifespans ranging up to 252000 hours under optimal conditions. The output stage capacitance is 3500µF, and ripple is maintained at 50mVpp, ensuring stable power delivery.

Puls

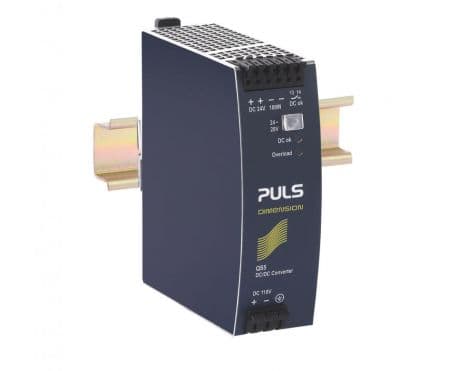

QS5.241-60
