ML100.200
Puls
Product Lifecycle: Active

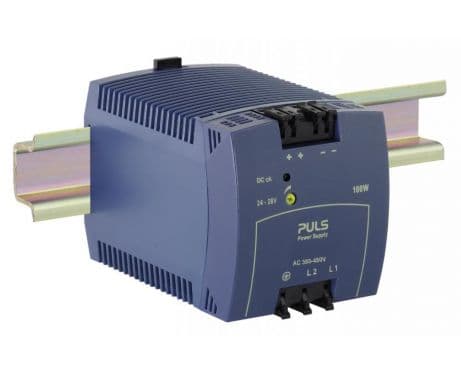

PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
![ML100.200](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FML100.200.jpg&w=3840&q=75)
PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
Product details
- UL File No.E198865
- Phase3 Phase
- Height75 mm
- Width73 mm
- Depth103 mm
- Current Output4.2 A
- Current Input0.46 A
- Power100 W
- Voltage Output24 - 28 VDC
- Voltage Input380 - 480 VAC
- Efficiency89.5 %
