PESC-H-EC Panduit Electronic Components

PESC-H-EC on Powermatic Associates
Panduit

Part#:PESC-H-EC

Manufacturer:Panduit

Category:Electronic Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 20, 2025

Product description

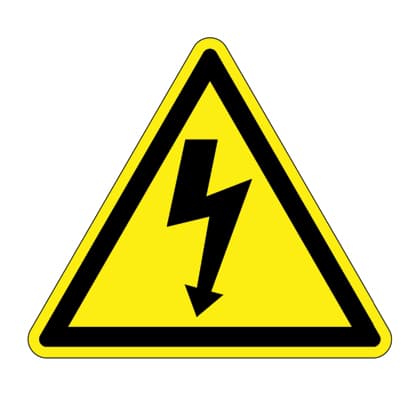

Panduit PESC-H-EC Electrical Symbol Card

Product Details

  • Overall Width (mm)
    12.96
  • Overall Height (mm)
    12.96
  • Legend Meaning
    Electrical Symbol
  • Standards Met
    RoHS Compliant
  • Overall Height (In.)
    0.51
  • Number of Labels
    680
  • Maximum Operating Temperature (°F)
    275
  • Overall Width (In.)
    0.51
  • Maximum Operating Temperature (°C)
    135
  • Minimum Operating Temperature (°C)
    -40
  • Minimum Operating Temperature (°F)
    -40
  • Product Type
    Symbol
  • Background Color
    Yellow
  • Legend
    SAFETY FUNCTION
  • Legend Color
    Black
  • Environment
    Indoor/Outdoor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
